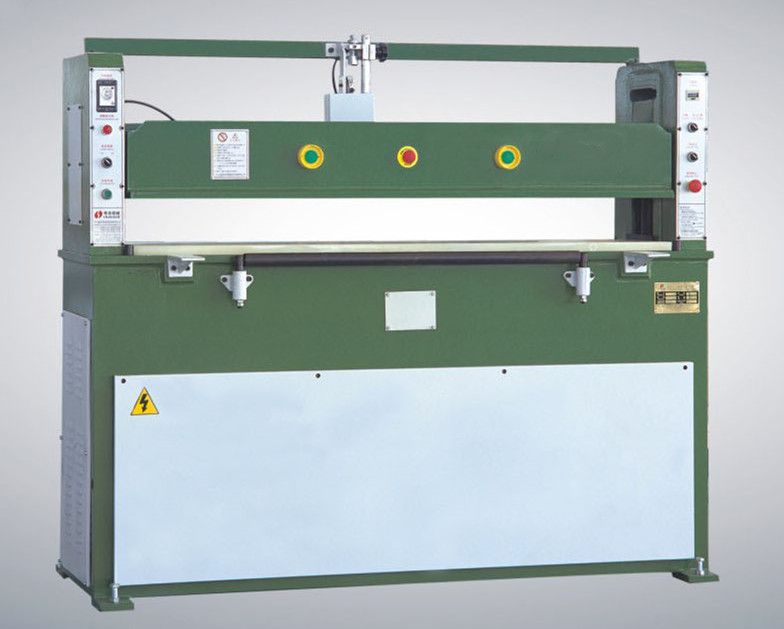

Semi-auto medical drape die cutting machine
This machine is used to cut various non-metal material by the die cutter.
The time control function on the machine allows the easiest setting of the cutting depth.
The machine is controlled with both hands to ensure working safety.
Automatic lubrication is equipped to prolong the service time of the machine.
| Model | 100/120/200 |
| Maximum cutting force | 100 KN/120KN/200KN |
| Working stroke adjusting range | 5-50/5-60/5-75 |
| Tension distance | 50-120/50-140/60-160 |
| Area of the working table | 800*400/900*410/1000*500 mm |
| Motor power | 0.75kw-1.5 kw |
| Weight | 400-1100 kg |

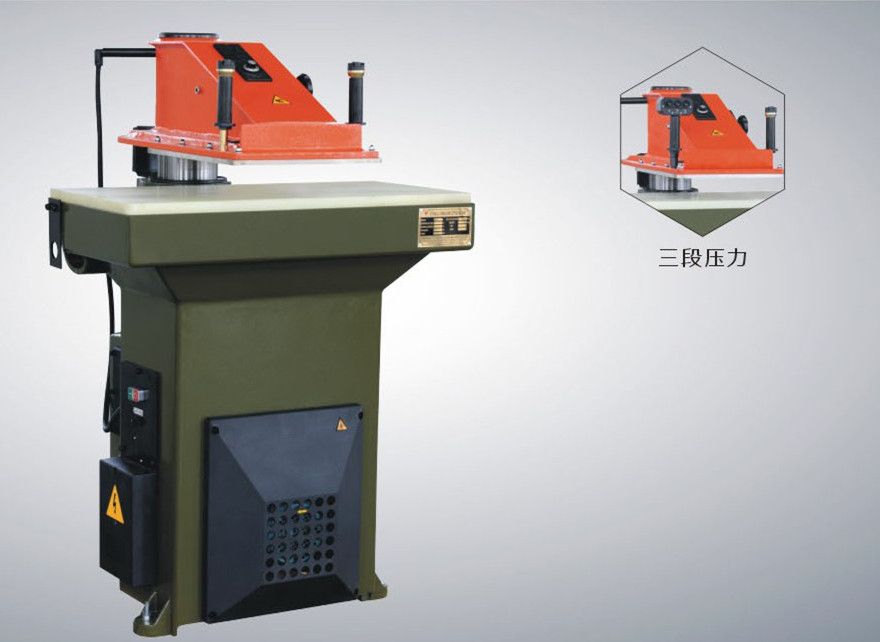

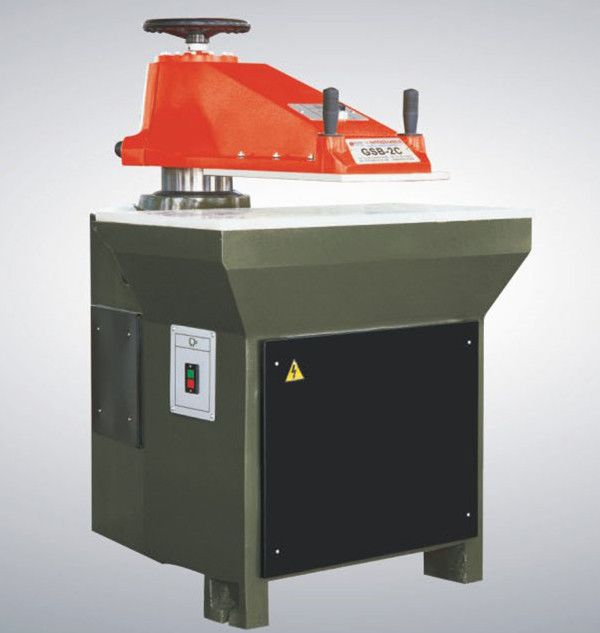

| Model | 200/270 |
| Maximum cutting force | 200KN/270KN |
Swaying arm width | 370 /500 mm |
| Cutting travel | 90 |
| Area of the working table | 900*430/1000*500 mm |
| Motor power | 1.1 kw-1.5 kw |
| Weight | 750-1200 kg |
| Model | 300 |
| Maximum cutting force | 300KN |
Tension distance | 50-150 |
| Cutting area | 1600*500 |
| Area of the working table | 900*430/1000*500 mm |
| Motor power | 2.2 kw |
| Weight | 1800 kg |
