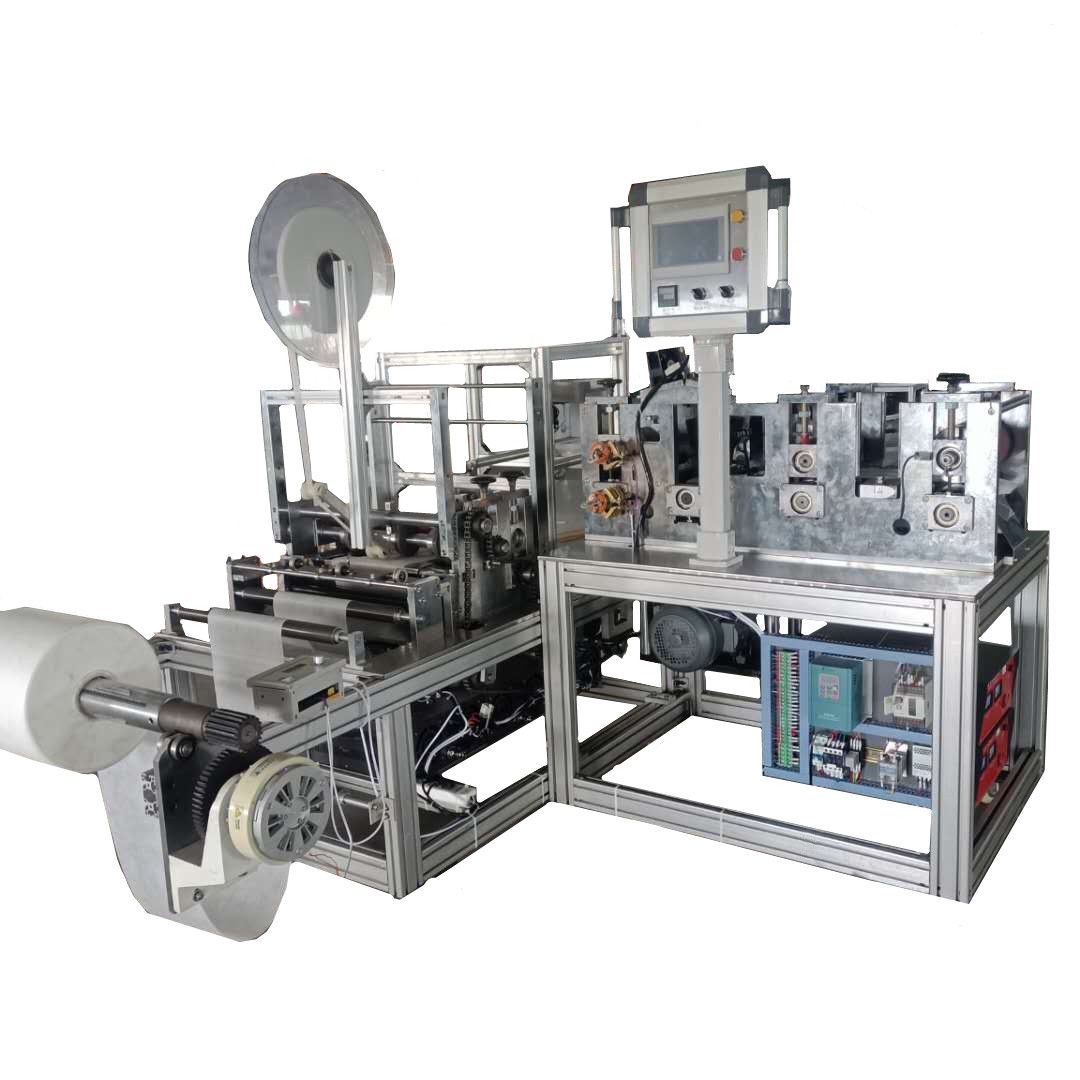

Automatic Nonwoven Shoe Cover Making Machine
Description
This equipment can be used to produce disposable shoe covers with nonwoven material. It is an full automatic model with stable running and can be operated with only one worker.
Working flow:
Automatic material feeding-folding-rubber band bonding-cutting
Equipment specifications
| Model | SAN-SCN |
| Material | Nonwoven + Rubber band |
| Product width | 510 mm |
| Working speed | 120-160 pcs/min |
| Power supply | 380 V 50 Hz |
| Packing size | 2500mm*1200mm*1400mm 1350mm*1000mm*1280mm |
| Machine dimension | 2600mm*2100mm*1500mm |
| Machine weight | 850 kg |
| Power | 3.8 kw |
| Finished product size | 400*160mm |
Major parts
| Name | Quantity |
| EPC unit | 1 set |
| Ultrasonic unit | 4 pcs |
| Unwinding unit | Mechanical axis 1 pcs |
| Folding unit | 2 pcs |
| Driving roller | 1 pcs |
| Side sealing unit | 1 pcs |
| Reinforce heating unit | 1 pcs |
| Rubber band unit | 2 pcs |
| Triangle folding unit | 1 pcs |
| Roll cutting unit | 1 set |
| Reducer motor | 1.5 kw |
| Convertor | 1.5 kw 1 pcs |
| Magnetic powder tension controller | 2.5 kg 1 set |
| Machine frame | Aluminum alloy |
Our Service
⇒One year guarantee for the whole machine, all life follow-up service.
⇒24 hours technical support by email.
⇒Technicians oversea set-up and workers training.
⇒User- friendly English for operation system.
Packing & Delivery
Packaging Details: Stretching film packing
Delivery Detail: Shipped in 30 days after payment
PACKING IS SEAWORTHY AND SAFE.
Exhibition♥
Q1: What is the warranty for the machine?
A1: For the machine, we offer one year warranty. If any quality problems occurred under normal conditions during this period, we will take on the costs of maintenance and replacement and other related costs.
Q2: How to operate and maintain the machine?
A2: First, we will provide a professional and detailed manual to you with the machine; Second, we will test and debug the machine into the best condition before shipment for you. Last but not least, we also provide abroad technical training services and online expertise consulting.
Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has over10 years of experience in this industry, we have accumulated various contact information of upstream&downstream firms in fields of raw material, auxiliary material, and package for the products. We believe that our professional team can always offer you the best solutions.
Q4: How to find the matching accessories or wearing parts of the machine?
A4: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with a favorable price if it is out of the warranty.
