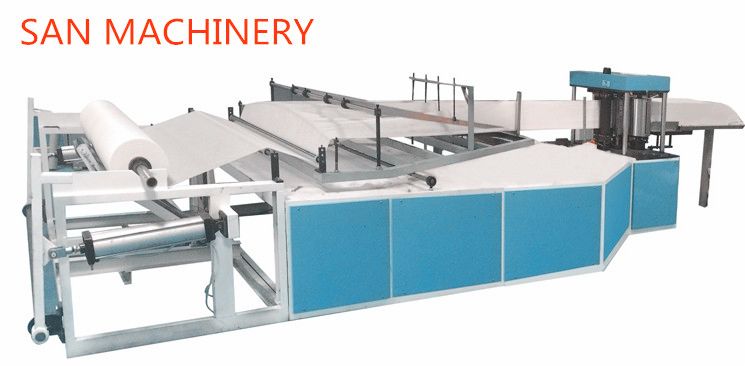

Medical bed sheet folding machine-perforated type

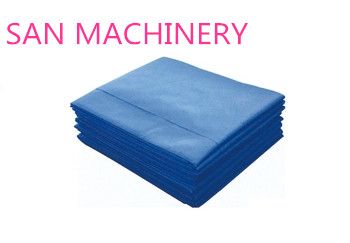

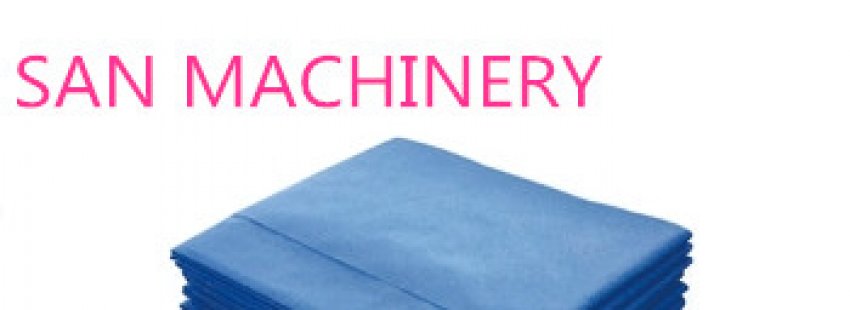

*This medical sheet folding machine produces consecutive folded medical sheet.The sheets are dot-connected and need to seperate in usage.
For individually folded medical sheet, pls check this model: http://www.sanpapermachinery.com/medical-bed-sheet-folding-machine.html
Working flow:
Pneumatic paper loading-- folding by half--punching sun hole or cross-shaped hole--folding by half--punching dotted line--continuous transverse folding --products pushing out
The machine enjoys feature of easy operation, stable running and high speed. The sheets are continuously folded with connecting between each two sheets and can be easily drew one after another. In usage, the sheets separate easily with slight efforts.
Technical specifications
Machine name | Perforated medical bed sheet folding machine |
Raw material width | 800-1200 mm |
Raw material specification | φ1000*800-1200 mm |
Folding size | 300*200-300 mm |
The hole to the dotted line | 165 mm |
Hole diameter | 90 mm |
Hole radial | 20 mm |
Capacity | 80-100 m/min |
Power | 380V 50 Hz |
Folding details | 1.Fold 800 mm width material by half, hole die cut |
2.Fold by half again and perforate | |
Servo device | 2 sets (hole die cut and perforate) |
Pneumatic material loading | air compressor provided by the clients |
