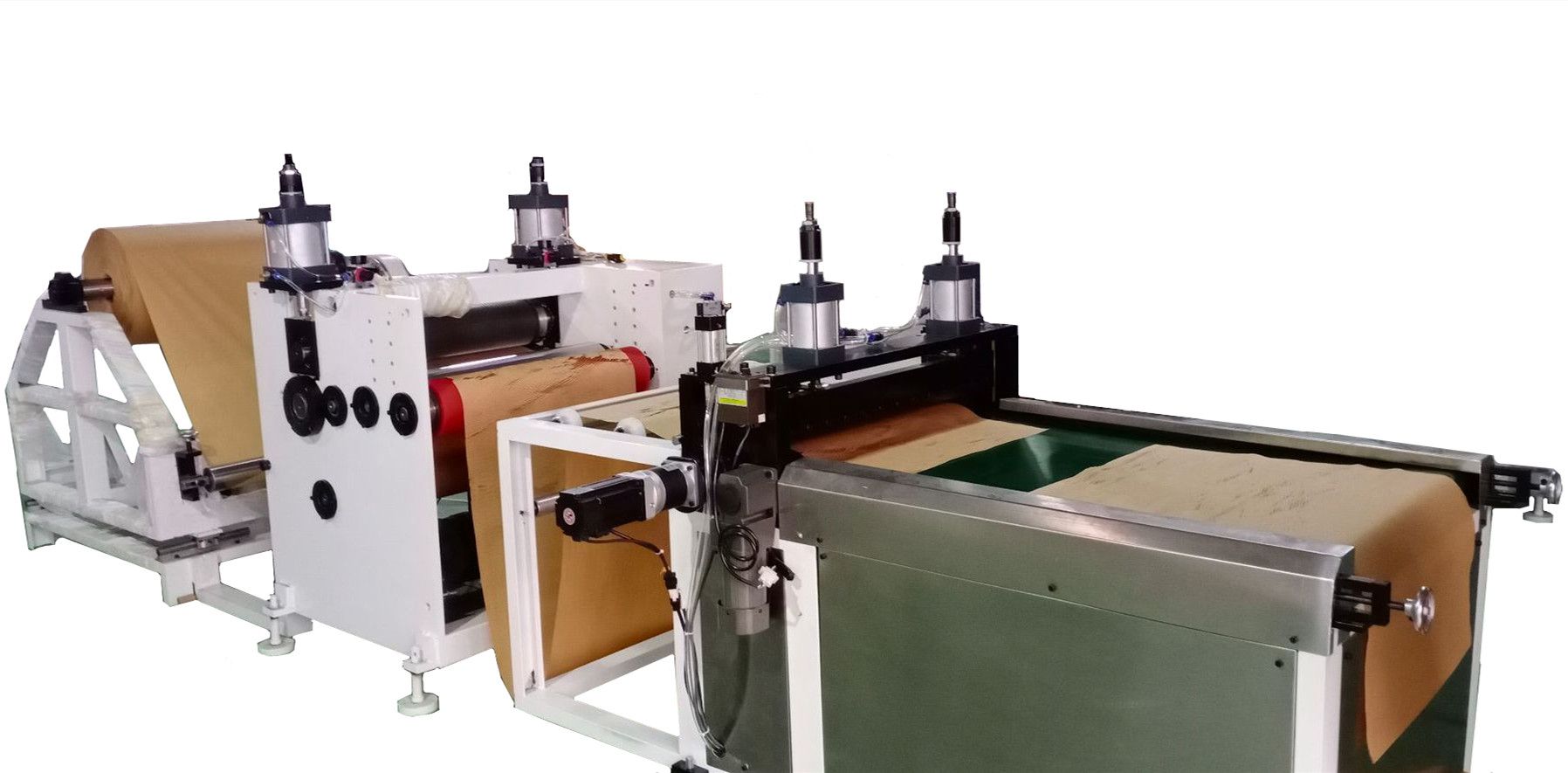

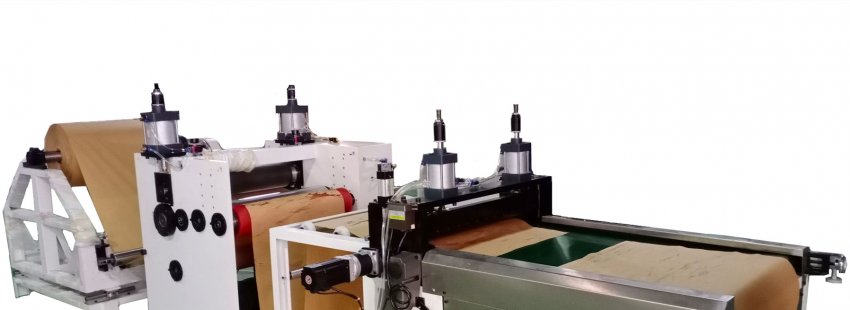

Honeycomb paper roll making machine

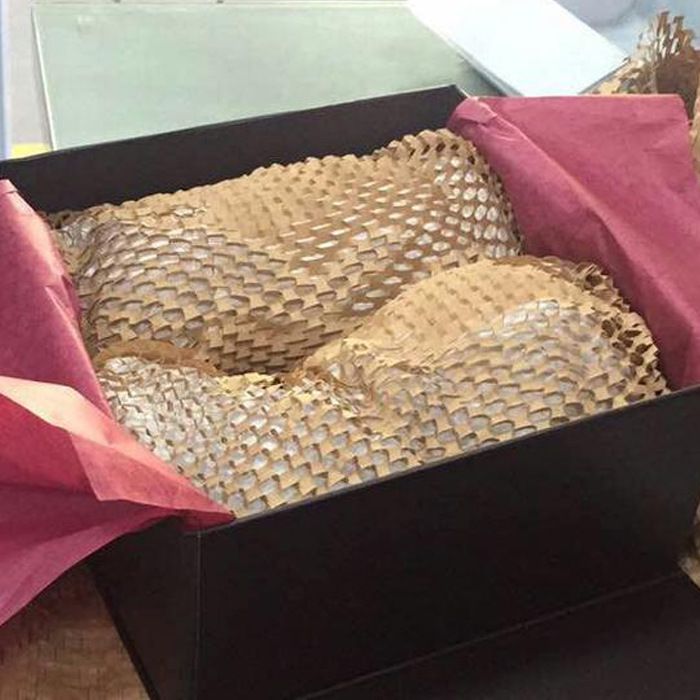

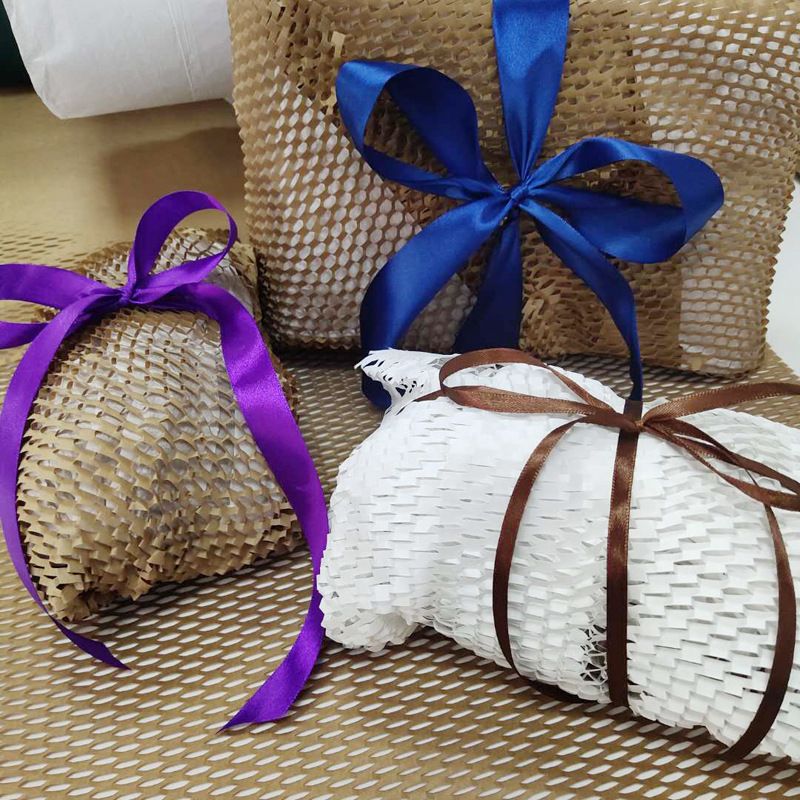

Honeycomb packaging paper is an eco-friendly packing material made out of high-quality kraft paper.
⭐Light-weight and low cost.
Compared with other plastic bubble wrap packing material, honeycomb packaging paper is small in size and compact in structure, thus can save transportation cost.
⭐Perfect cushioning
Honeycomb packaging paper can provide good cushioning and great protection for fragile items. With its unique structure, honeycomb paper is elastic and can absorb outside pressure.
⭐Eco-friendly
Honeycomb packaging paper is made out of recyclable kraft paper compared with other plastic packing films. It is a biodegradable and environment-friendly packing alternative.
Model | Rewinding model |
Raw material | ⌀1200 mm*500 |
Unwinding unit | ⌀75*600 mm |
Rewinding unit | ⌀150*600 mm |
Rewinding paper core | ⌀ 50 mm |
Magnetic powder brake | 10 kg for unwinding and 5 kg for rewinding |
Cutting mold | ⌀ 146 mm |
Motor | 4 kw |
Converter | 4 kw |
Rubber roller | ⌀150*600 mm |
Transferring roller | ⌀80*600 mm |
Automatic rectifying unit | yes |
Working speed | 120-135 m/min |
Power | 380 V 50 Hz |
Wearable parts (to be replaced two years later) | Cutting mold can be sharpened by lathe for 4 times. It costs about $600 to sharpen and about $ 7,500 to replace one set of mold. |

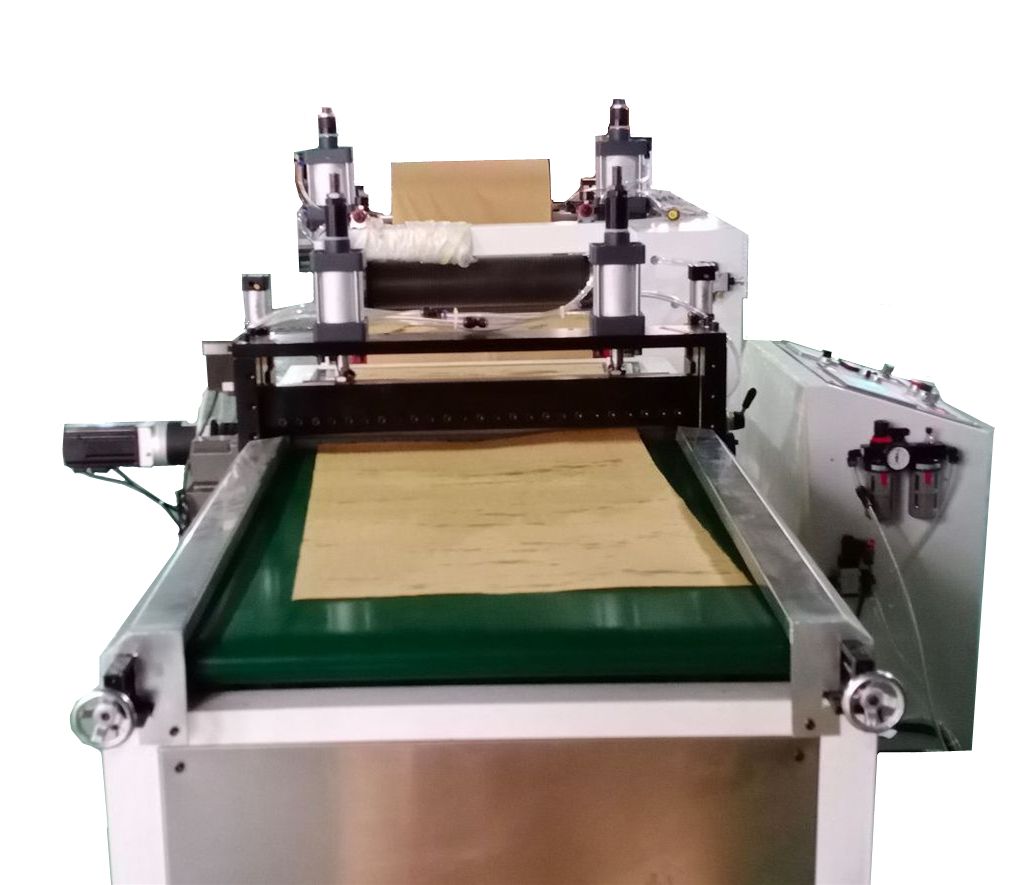

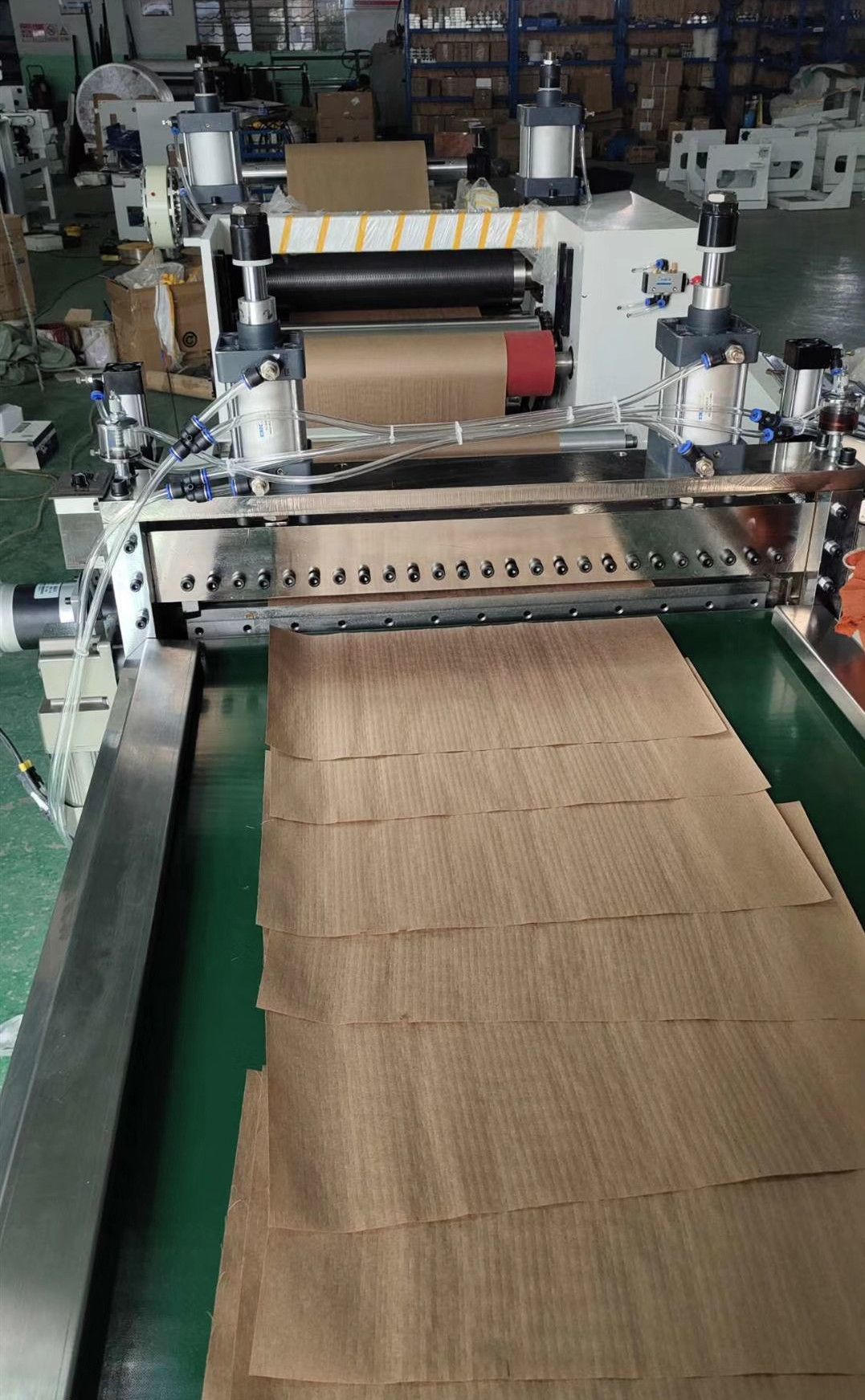

Model | Cutting model |
Magnetic powder brake | 10 kg for unwinding |
Cutting mold | ⌀140*600 mm |
Cutting bottom knife | ⌀146*600 mm |
Motor | 4 kw |
Rubber roller | ⌀146*800 mm; ⌀81*800 mm |
Transferring roller | ⌀80*800 mm |
Servo motor | 750 w |
Touching panel | 1 set |
PLC | Mitsubishi |
Cutting knife | 750 mm |
Automatic rectifying unit | yes |
Working speed | 35-40 cuts/min |
Power | 380 V 50 Hz |
Wearable parts (to be replaced two years later) | Cutting bottom knife Rubber rollers Cutting knife |
