Description:
SAN-DPZ Jumbo Roll Slitting and Rewinding Machine is used to slit and rewind toilet tissue,non-woven and air-laid paper.The machine cut and rewind single-layer paper roll into two,three and four layers with various widths for the production of napkins,tissues, facial or sanitary napkins. The machine features for stable operation, easy operation and good winding profiles, making it the ideal equipment for paper mills and textile factories.
Technical specification
| Machine Model | 1575 | 1880 | 2400 | 2600 | 3150 | 3500 |
| Raw Material Width(mm) | 1800 | 2100 | 2400 | 2500 | 3000 | 3500 |
| Finished product diameter | ≤1200mm | |||||
| Raw material diameter | 1200mm | |||||
| Speed | 260-300 m/min | |||||
| Pneumatic System | 3 HP air compressor | |||||
| Power | 4.5-11KW | |||||
| Dimension | 6200*2600*1800-6200*4000*1800mm | |||||
| weight | 3800-7000kg | |||||
| Parent roll stands | 1-3 sets, independent motor driving. | |||||
| diameter of paper core | 3”(76.2mm) | |||||
| Diameter of finished roll | Max.1500 mm | |||||
| Slitter | 10 sets | |||||
| Finished roll upper movement | rails, equipped with pneumatic cylinder | |||||
| Paper Edge suction | Yes | |||||
| Paper broken detection | Yes | |||||
| Automatic braking | Yes | |||||
| Discharge mode of finished product | pneumatic pushed out | |||||
| Paper end cutting | automatic | |||||
| Paper end blowing | automatic | |||||
| Shaft down | automatic | |||||
| OPTION | ||||||
| Rewinding | Air expanding shaft | |||||
| Transmission system | Frequency conversion and speed regulator | |||||
| Calendaring system | Double calendar | |||||
Machine details

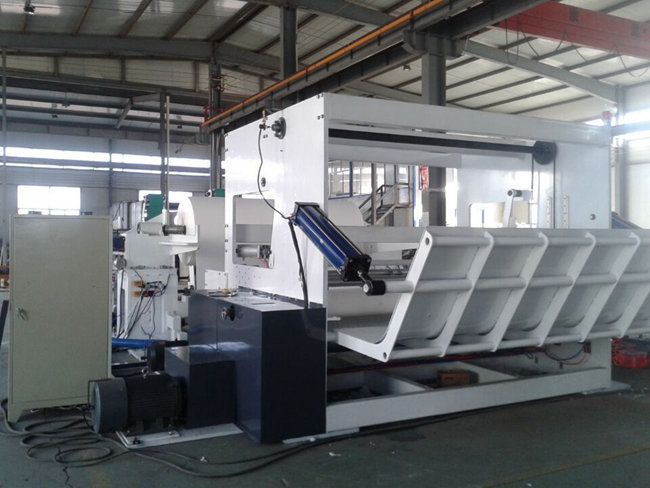

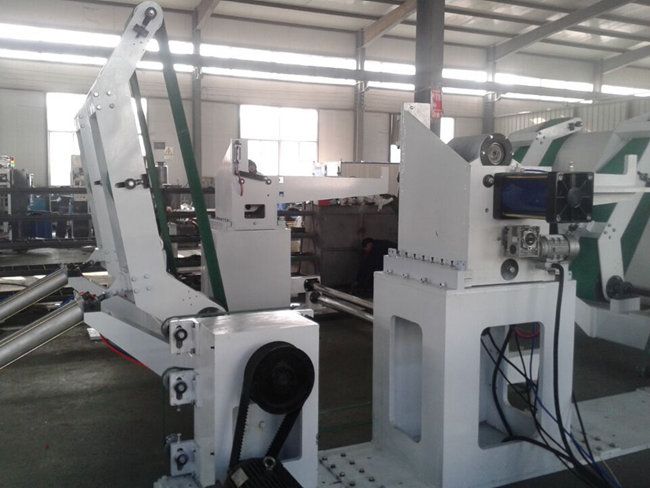

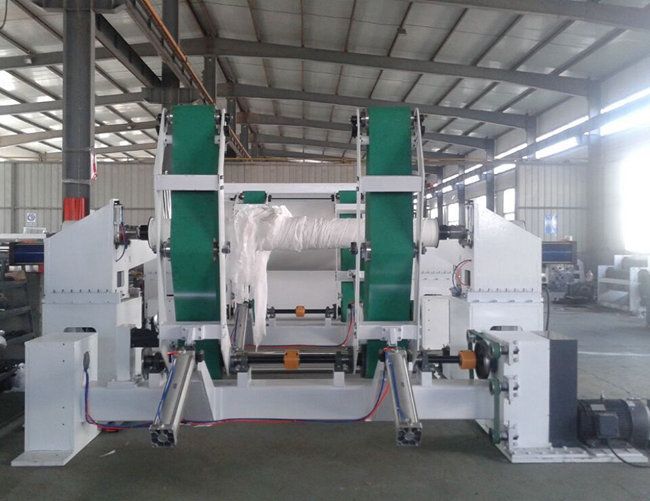

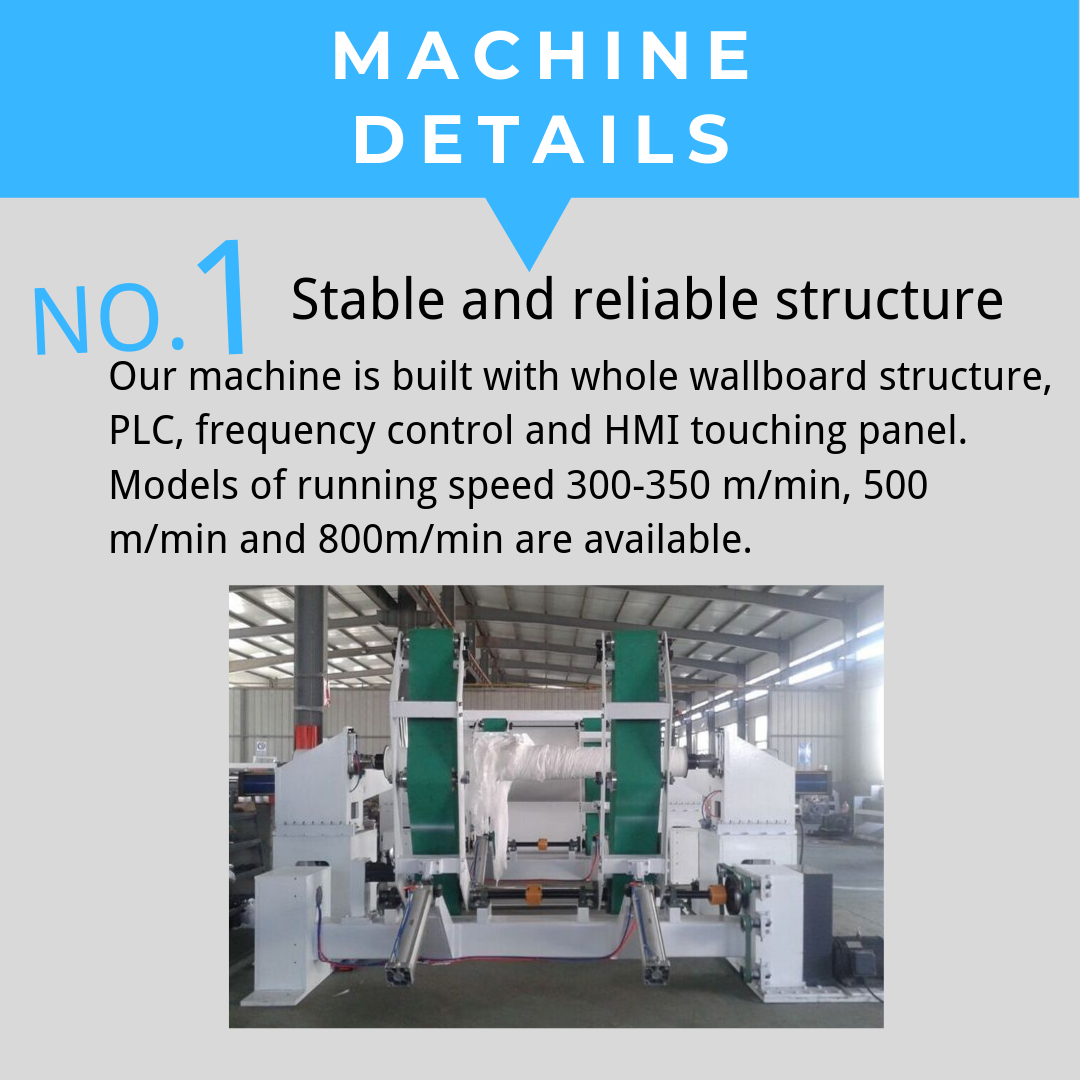

Overall:

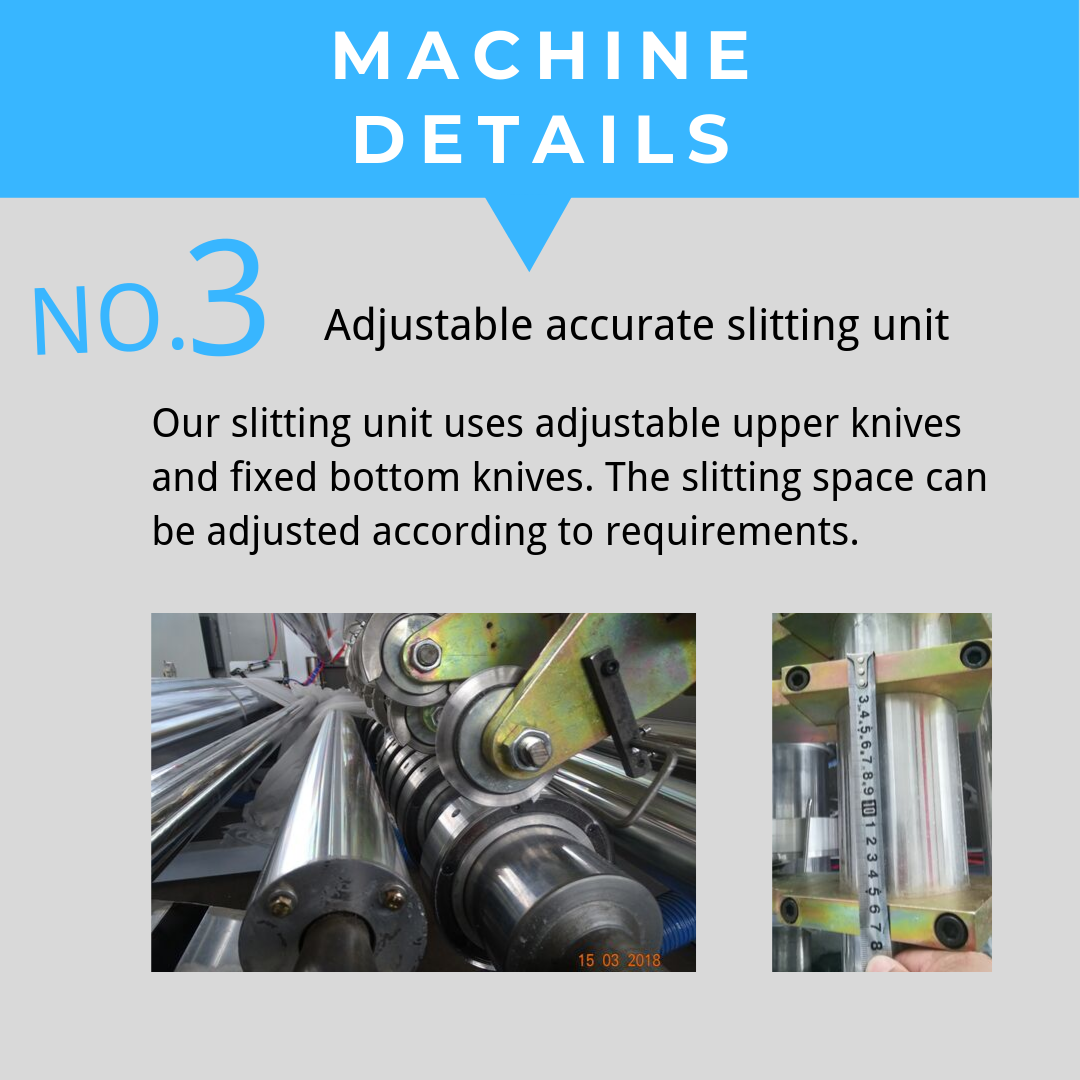

Slitters:

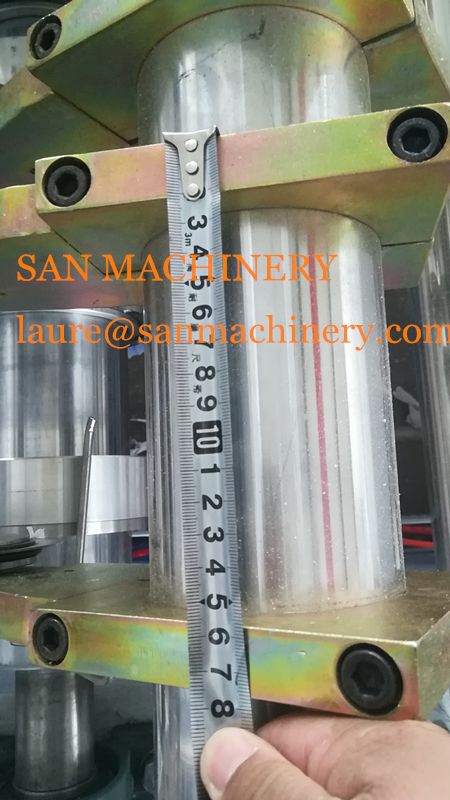

Slitting width adjustable:
Vertical track:

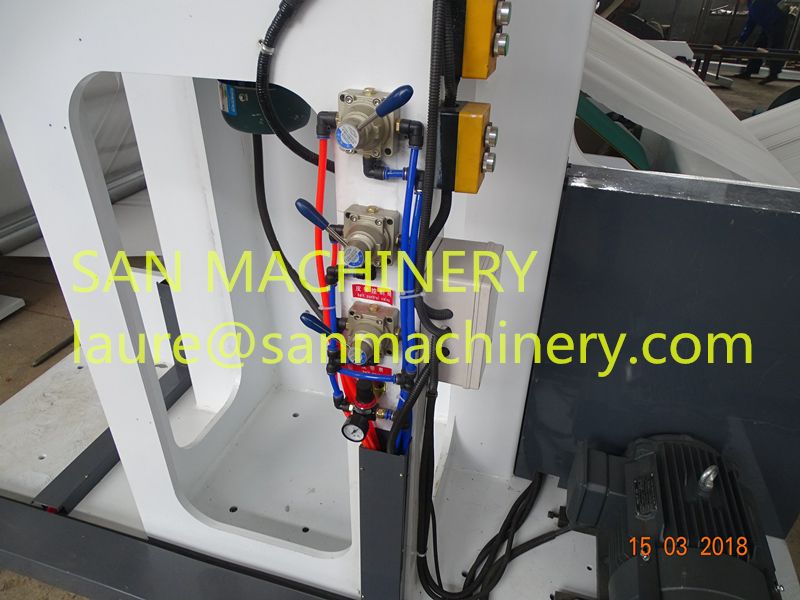

Automatic paper edge suction and blowing：

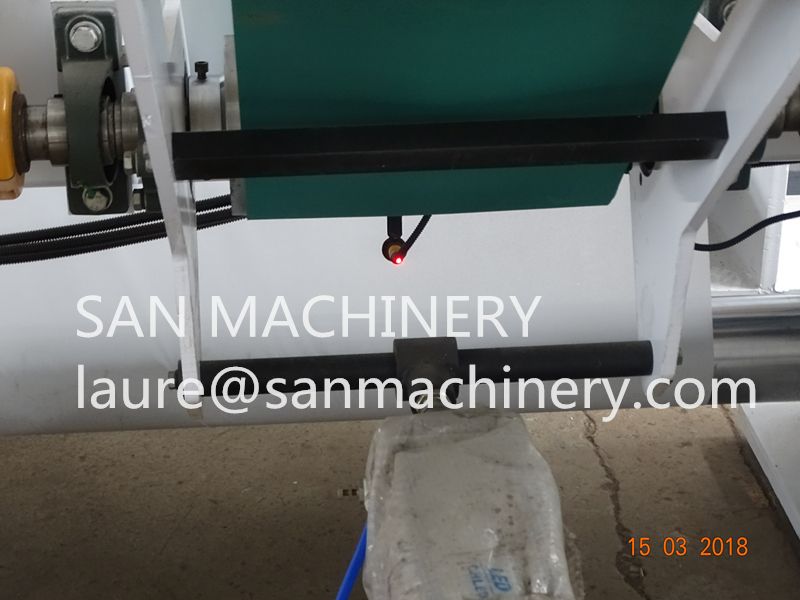

Paper break sensor:

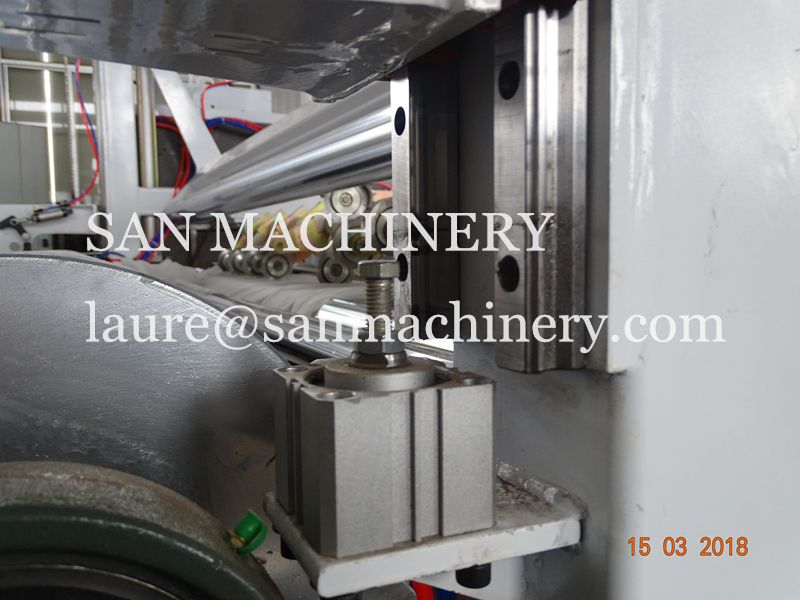

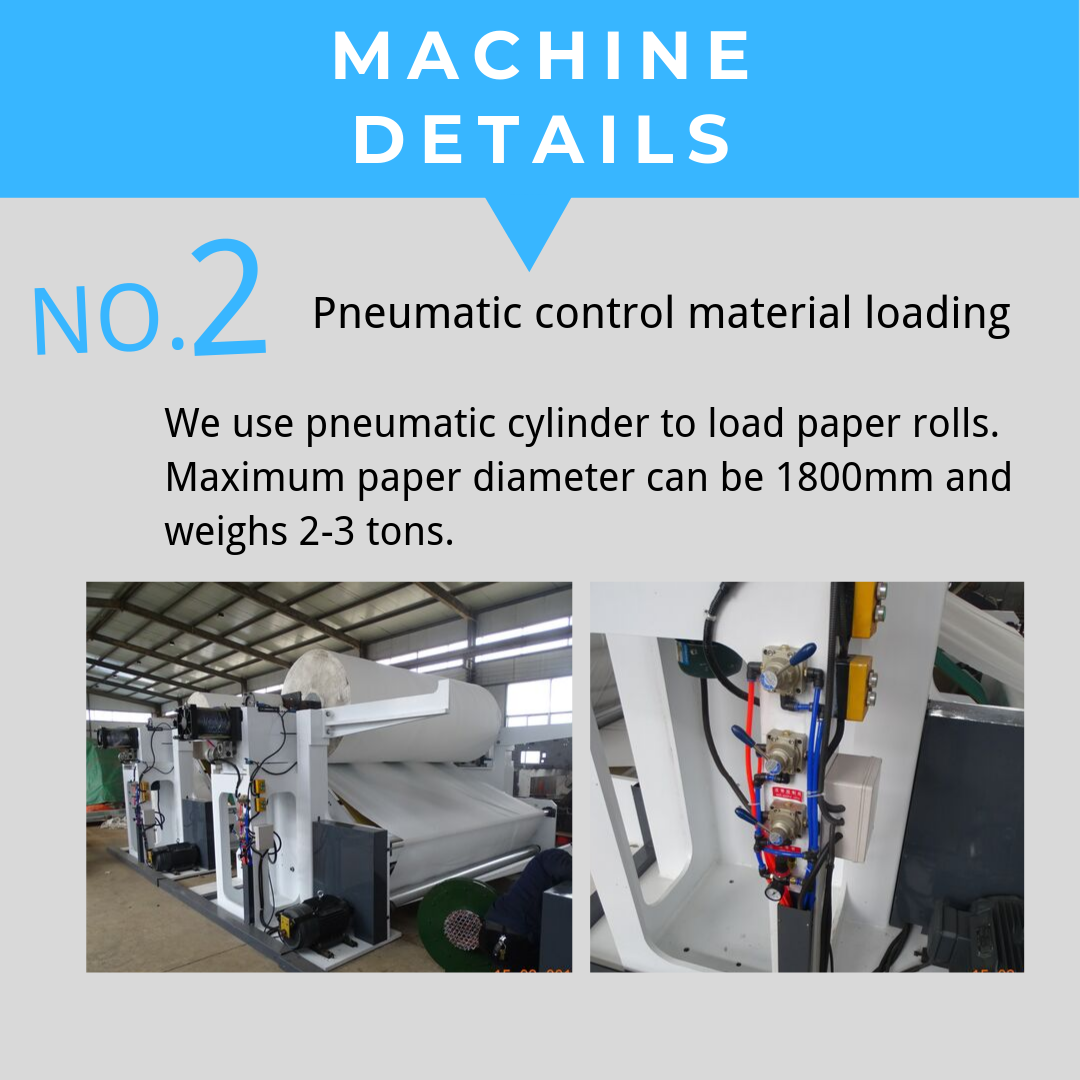

Independ cylinder control for paper back stands:
