Description:

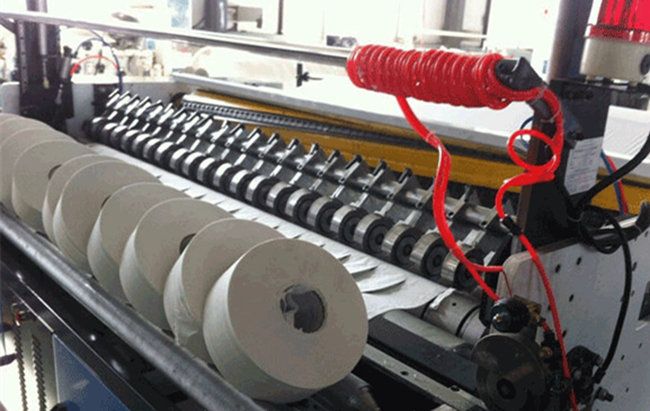

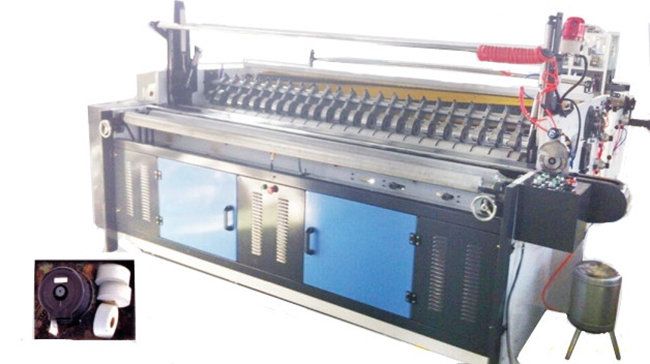

Small Jumbo Roll Slitting and rewinding machine is set with pneumatic roll loading,belt driving ,web tension control and finished roll air shaft rewinding , enabling edge embossing, perforating, slitting and rewinding at one time.
Technical specification:
| Model | SAN-XPZ-1200-3500 |
| Raw material width | 1200-3500 MM |
| Raw material diameter | Ф 1300 mm |
| Finished roll width | 100 mm(can be ordered) |
| Finished roll diameter | Ф 90-250mm |
| Perforation | 90-160 mm |
| Raw material core diameter | 76.2 mm |
| Speed | 180-200 m/min |
| Power | 7.5 kw |
| Rewinding | By air shaft |
| Perforation | 90-160mm |
| Unwinding unit | 1-3 plies |
| Pneumatic system | 3 HP air compressor, mini pressure 5kg/cm² Pa(provided by client) |
| Option | |
| Unwinding unit | 1-3 plies |
| Edge embossing unit | Steel to steel |
| Calendering unit | Steel to steel ,steel to rubber |
| Tail suction unit | 1.5 kw vacuum tail suction unit |
| Tail sealing unit | Can be ordered |
| Driving system | Frequency conversion speed regulator |
Features of Products
(1) Air shaft is used to rewind the finished products with high location accuracy.
(2) Edge Embossing Unit: Adopts steel to steel edge embossing and independent cylinder control to avoid paper separating.
(3) Horizontal unwinding unit with pneumatic paper roll loading. Wide transmission belt is set with individual tension control unit for each jumbo roll.
(4) Frontal and back inching switch is set to drive the paper and make easier and safer operation.
(5) Optional sealing function can be added to the customer’s requirement.
