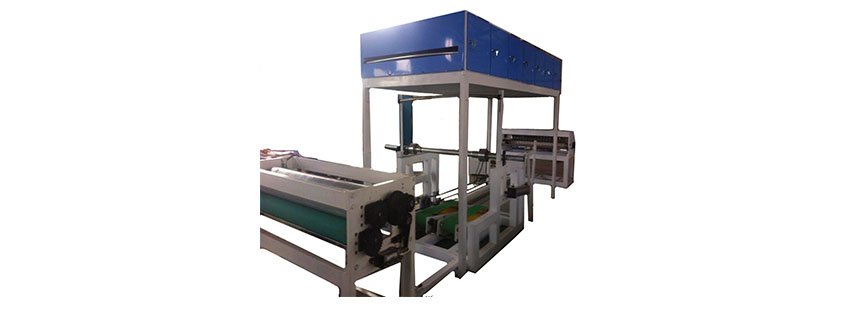

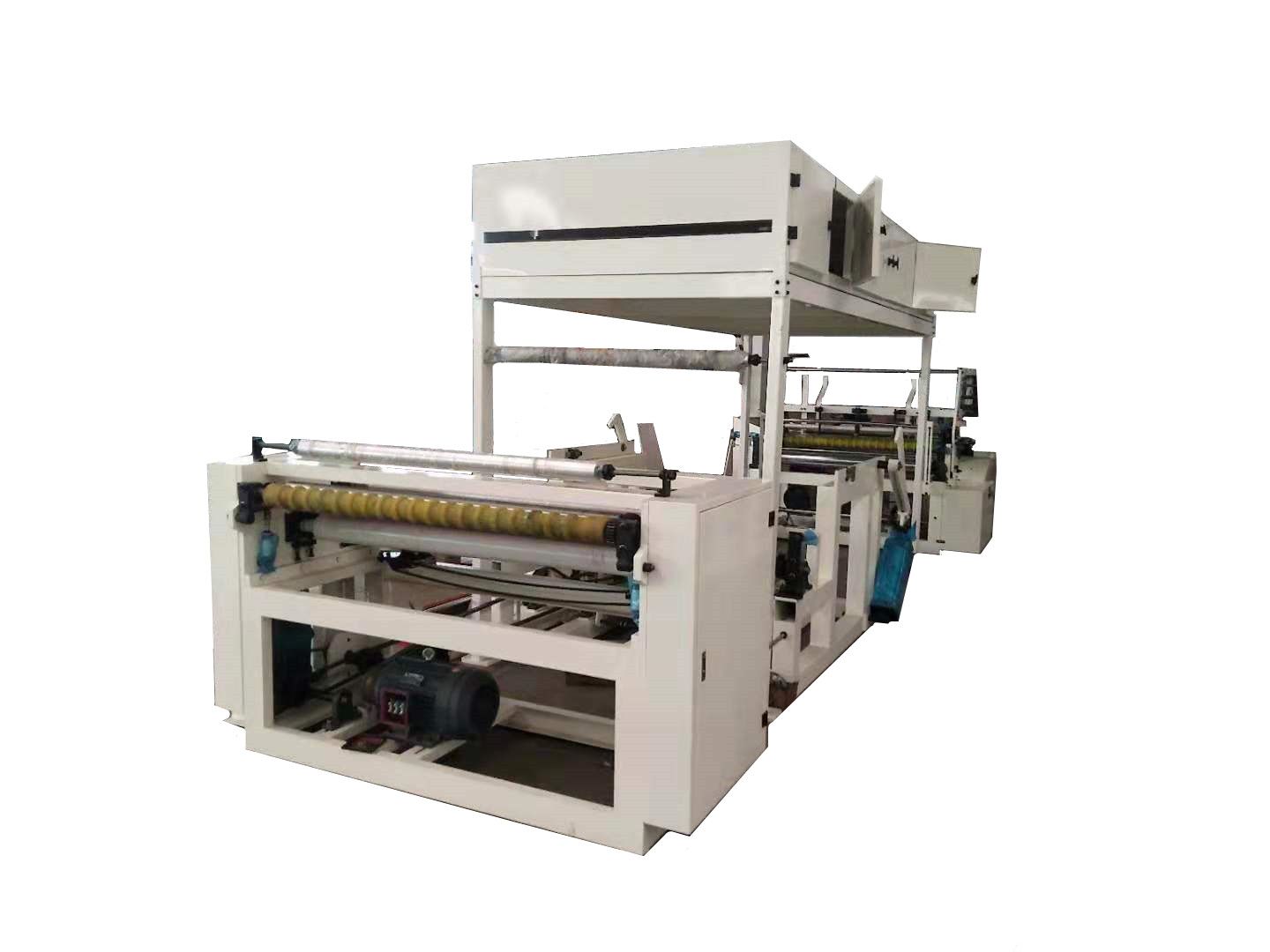

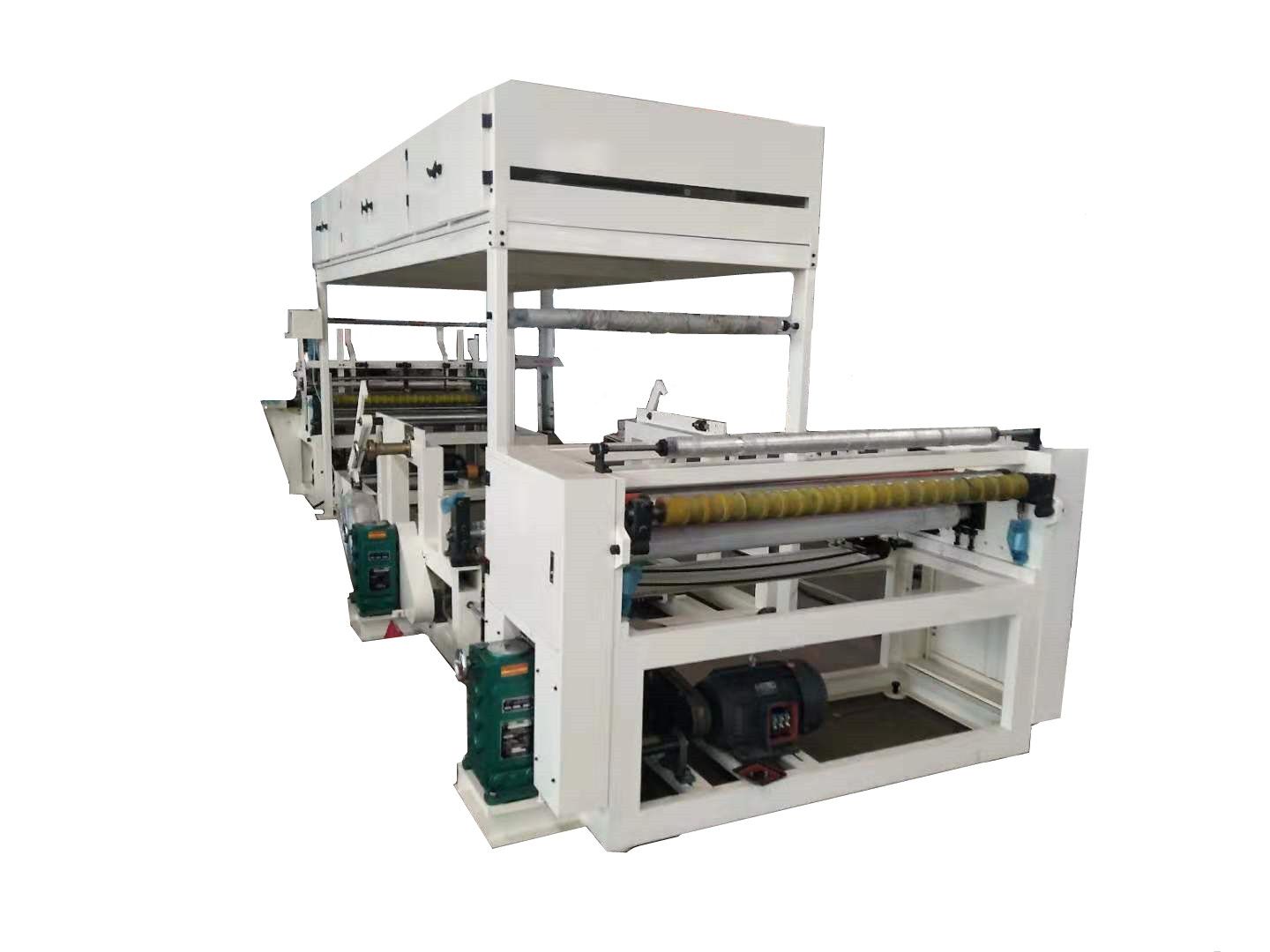

Full Automatic Neck Paper Roll Production line
Click to check the video: https://youtu.be/cHk1DVG9D98
Description:

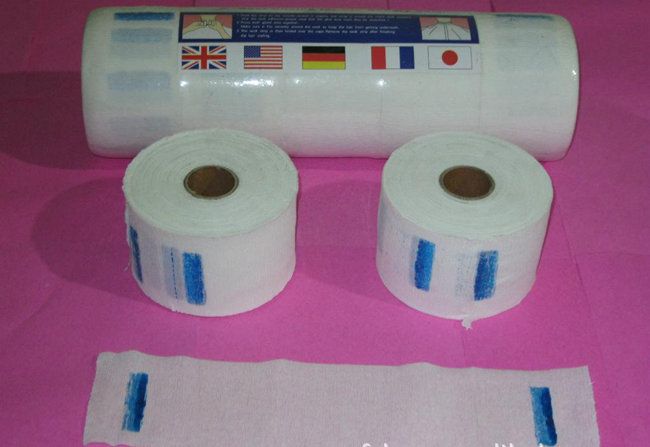

The machine is a professional production equipment for hairdressing neck circumference toilet roll. Neck circumference paper is a kind of waterproof paper,with very strong tensile force of 100% pure wood pulp paper,which can prevent the neck dip to cosmetics and other foreign objects during the hairdressing process.The machine adopts the flexo graphic printing water borne adhesive, synchronous perforating principle, drying equipment, which the products are widely used in the hairdressing industry.
Feature
1.Step less adjustment, each function can be operated independently;
2.Manual core loading and replacing.The logs are automatically pushed out after finishing winding, and then start winding again.
3.With high precision screwy perforation knife, makes a lower perforation noise and clearer perforating, larger adjusting scope of gear box.
4.Horizontal back-stands, pneumatic jumbo roll loading, and pneumatically wide belt paper unwinding driving, and individual web tension control unit for each jumbo roll.
5.The web can be threaded on the machine by the two jog buttons, It's more safety and easier to feed the web.
Specifications
| Raw material width | 1350mm |
| Finished roll diameter | Φ60~150 mm adjustable tightness |
| Finished paper core inner diameter | Φ 28～50 mm |
| Finished roll rewinding core shaft | Φ 28～50 mm |
| Raw material diameter | ≤1100 mm |
| Raw material core inner diameter | φ1905px |
| Perforation pitch | 280mm adjustable |
| Speed | 80-100 m/min |
| Counter | Electronic counter |
| Unwinding unit | 1 ply |
| Pneumatic unit | 3HP air compressor min, pressure 5kg/c㎡ |
| Drying | Hot air drying |
| Printing unit | Single color flexo printing |
| weight | 3000kg |
| size | 7000×1800×1500mm |
