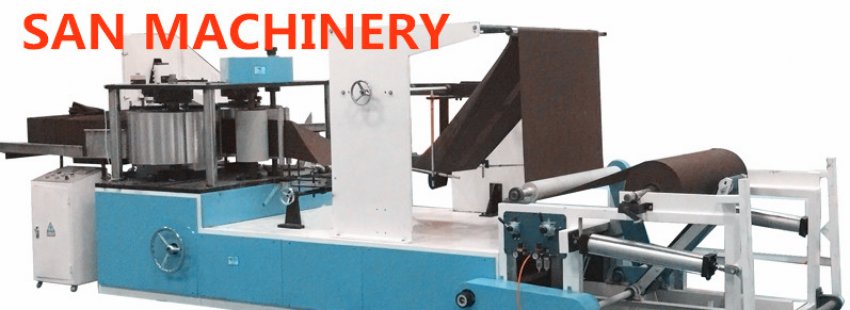

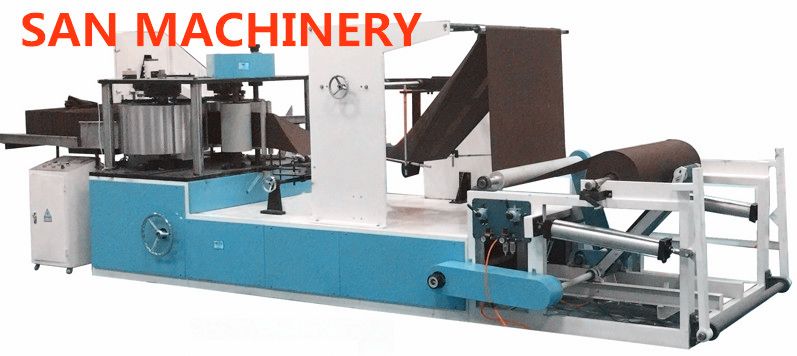

Non-woven surgical drape folding machine
Video: https://youtu.be/SacW1gfFgtM
Features:

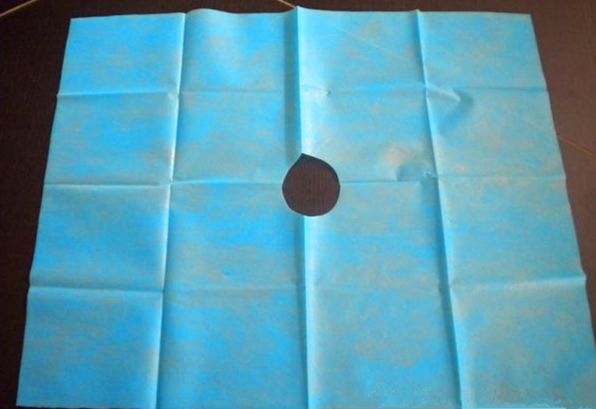

Products:medical bed sheet,massage bed sheet,outdoor bed sheet.
Working flow:
synchronous delivery--automatic 1/2 folding--die cutting--- C folding---automatic 1/2 folding---servo motor perforating---up and down counting---product output
The machine equipped with one set of steel die-cutting knife mold, and drive by servo motor,the perforating position adjustable.
The equipment perforating function drive by servo motor,perforating length adjustable by touch screen,for example 10mm,101mm,2200mm,2515mm,etc.
Technical parameters:
Model | Medical drape folding machine |
Speed | 400pcs/Min |
Printing system | 4 sets(independent drying, printing) |
Die cutting knife | Alloy steel |
Servo system | 2 sets(Panasonic/ Mitsubishi) |
Touch screen | 1 set (Panasonic/ Mitsubishi) |
Tracking color code system | 1 set (Omron ) |
Voltage/frequency/total power | 380v/50hz/5.5kw |
Dimension | 7500x1300x1700mm(LxWxH) |
Weight | 2000kg |
