Toilet paper production line
To produce toilet paper rolls, there will be at least three machines needed: a toilet paper rewinding machine, a cutting machine and a packing machine.
We are going to introduce you several plans based on the total capacity and budget. For more details, pls contact us at laure@sanmachinery.com.
【Plan 1 】 https://youtu.be/cUGGjC686mI
* Small investment/start up/cheap plan

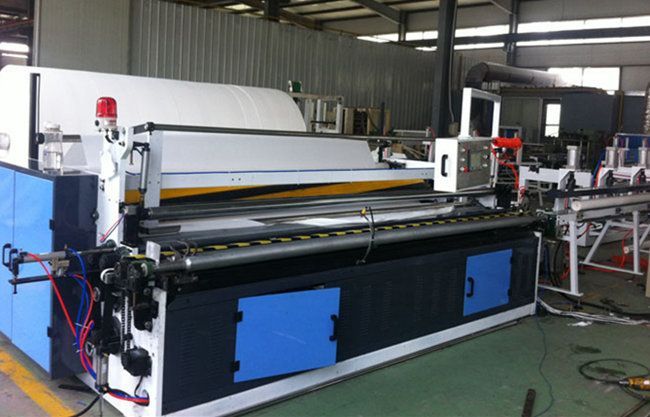

A. Toilet paper rewinding machine (SAN-FJ 1200-1800)
B. Manual band saw cutting machine
C. End sealing machine
No | Name | Technical details | Capacity | Labors |
1 | Toilet paper rewinding machine (SAN-FJ 1200-1800)
| 1. Material roll width 1200-1800 mm 2. Finished roll diameter 60-150 mm 3. Finished roll core diameter 20-50 mm 4. Speed 150-180 m / min 5. Program controller 6. Power 5-12 kw 7. Advanced PLC programmable control technology 8. Stepless adjustment 9. Pneumatic products tension control | 1.3 -1.9 ton/8 h | 2 |
2 | Manual band saw cutting machine
| 1.Paper roll length(mm) 0-1800mm 2.Paper roll dia (mm) 90mm-150mm standard: 110+(-)5mm 3. Cutting length adjustable 4. Machine speed 15-40 cuts/min 5.Cutting length adjustable 6.The length of saw blade 3420 mm 7.Power 380v, 50hz, 3 phase, 1.5 kw | 14,400 cuts/8 h | 1 |
3 | End sealing machine
| 1.Power 220V 2. Pump power 15-32 w 3.Sealing width 450 mm 4. Sealing 6 mm 5. Weight 50 kg 6. Speed 20-25 packages / min
| 12,000 packs/8 h | 1 |
【Plan 2 】 https://youtu.be/u6L8jQf2W7g
* Small investment/start up/economic plan
A. Toilet paper rewinding machine (SAN-FJ 1200-1800)
B. Automatic band saw cutting machine
C. End sealing machine
No | Name | Technical details | Capacity | Labors |
1 | Toilet paper rewinding machine (SAN-FJ 1200-1800)
| 1. Material roll width 1200-1800 mm 2. Finished roll diameter 60-150 mm 3. Finished roll core diameter 20-50 mm 4. Speed 150-180 m / min 5. Program controller 6. Power 5-12 kw 7. Advanced PLC programmable control technology 8. Stepless adjustment 9. Pneumatic products tension control | 1.3 -1.9 ton/8 h | 2 |
2 | Automatic band saw cutting machine
| 1.Paper roll length(mm) 0-1800mm 2.Paper roll dia (mm) 90mm-150mm standard: 110+(-)5mm 3. Cutting length adjustable 4. Machine speed 40-160 cuts/min 5.Cutting length adjustable 6.Power 380v, 50hz, 3 phase, 2-8 kw | 20,000-75,000 cuts/8 h | 1 |
3 | End sealing machine
| 1.Power 220V 2. Pump power 15-32 w 3.Sealing width 450 mm 4. Sealing 6 mm 5. Weight 50 kg 6. Speed 20-25 packages / min
| 12,000 packs/8 h | 1 |
【Plan 3 】 https://youtu.be/0HabH0NmbD0
* High-yield / Automatic production line/ larger capacity
A. Toilet paper rewinding machine (SAN-FJ 1800-3500)
B. Log saw cutting machine
C. Automatic packing machine
No | Name | Technical details | Capacity | Labors |
1 | Toilet paper rewinding machine (SAN-FJ 1800-3500)
| 1. Material roll width 1800-3500 mm 2. Finished roll diameter 60-150 mm 3. Finished roll core diameter 20-50 mm 4. Speed 150-180 m / min 5. Program controller 6. Power 8-15 kw 7. Advanced PLC programmable control technology 8. Stepless adjustment 9. Pneumatic products tension control | 1.9-3.7 ton/8 h | 2 |
2 | Log saw cutting machine
| 1.Paper roll length(mm) 0-3500mm 2.Paper roll dia (mm) 90mm-150mm standard: 110+(-)5mm 3. Cutting length adjustable 4. Machine speed 120-180 cuts/min 5.Cutting length adjustable 6.Power 380v, 50hz, 3 phase, 10-15 kw 7. Circular blade diameter 610 mm 8.Circular blade diameter 610 mm 9.Cutting knife error:±1 mm | 58,000-90,000 cuts/8 h | 1 |
3 | Automatic packing machine
| 1.Power 220V 2. Main power 5-15 kw 3.Material CPP, OPP packing film 4. Packing method: individual/multiple rolls 5.Speed 20-120 bags/min 6. Speed 20-30 packages / min
| 10,000-58,000 packs/8 h | 1 |
【Plan 4 】
* High-yield / Automatic production line/ larger capacity/Full automatic/ ready to sell
A. Toilet paper rewinding machine (SAN-FJ 1800-3500)
B. Log saw cutting machine
C. Automatic packing machine (individual and multiple rolls)
No | Name | Technical details | Capacity | Labors |
1 | Toilet paper rewinding machine (SAN-FJ 1800-3500)
| 1. Material roll width 1800-3500 mm 2. Finished roll diameter 60-150 mm 3. Finished roll core diameter 20-50 mm 4. Speed 150-180 m / min 5. Program controller 6. Power 8-15 kw 7. Advanced PLC programmable control technology 8. Stepless adjustment 9. Pneumatic products tension control | 1.9-3.7 ton/8 h | 2 |
2 | Log saw cutting machine
| 1.Paper roll length(mm) 0-3500mm 2.Paper roll dia (mm) 90mm-150mm standard: 110+(-)5mm 3. Cutting length adjustable 4. Machine speed 120-180 cuts/min 5.Cutting length adjustable 6.Power 380v, 50hz, 3 phase, 10-15 kw 7. Circular blade diameter 610 mm 8.Circular blade diameter 610 mm 9.Cutting knife error:±1 mm | 58,000- 90,000 cuts/8 h | 1 |
3 | Automatic packing machine- individual
| 1.Power 220V 2. Main power 5 kw 3.Material CPP, OPP packing film 4. Packing method: individual 5.Speed 20-120 bags/min
| 58,000 packs/8 h | 1 |
4 | Automatic packing-multiple rolls
| 1.Power 220V 2. Main power 15 kw 3.Material CPP, OPP packing film 4. Packing method: multiple rolls 5. Speed 20-25 packages / min
| 10,000 packs/8h | 1 |
【Plan 5 】 https://youtu.be/2exQOil7dn8
A. Non-stop toilet paper production line
http://www.sanpapermachinery.com/product/production-line.html
No | Name | Technical details | Capacity | Labors |
1 | Non-stop toilet paper production line
| 1. Material roll width 1800-3500 mm 2. Finished roll diameter 60-150 mm 3. Finished roll core diameter 20-50 mm 4. Speed 300-350 m / min 5. Program controller 6. Power 8-15 kw 7. Advanced PLC programmable control technology 8. Stepless adjustment 9. Pneumatic products tension control | 3-6.5 ton/8 h | 2 |
2 | Automatic packing machine
| 1.Power 220V 2. Main power 5-15 kw 3.Material CPP, OPP packing film 4. Packing method: individual/multiple rolls 5.Speed 20-120 bags/min 6. Speed 20-30 packages / min
| 10,000-58,000 packs/8 h | 1 |
