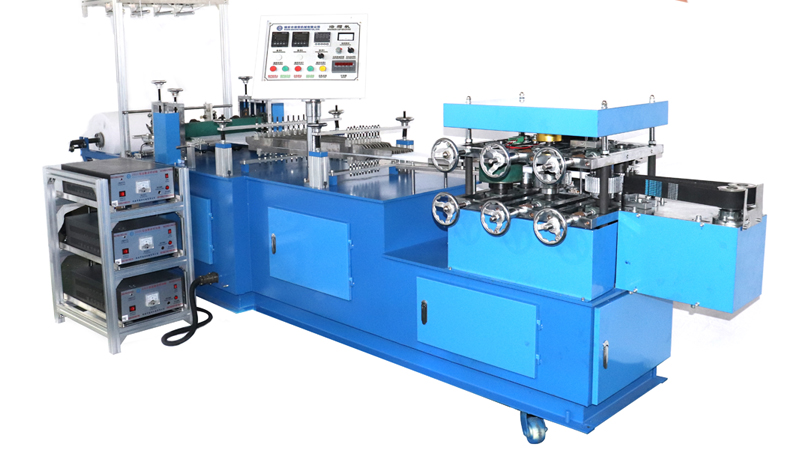

SAN-BC Bouffant Cap Making Machine
Part 1. Technical Specifications
1.1 Main specifications and technical parameters
Model | SAN-BC |
Material | Non-woven or plastic film |
Material width | 480 mm |
Finished width | 2 cm |
Non-woven thickness | 10-18 g |
Material max. diameter | 600 mm |

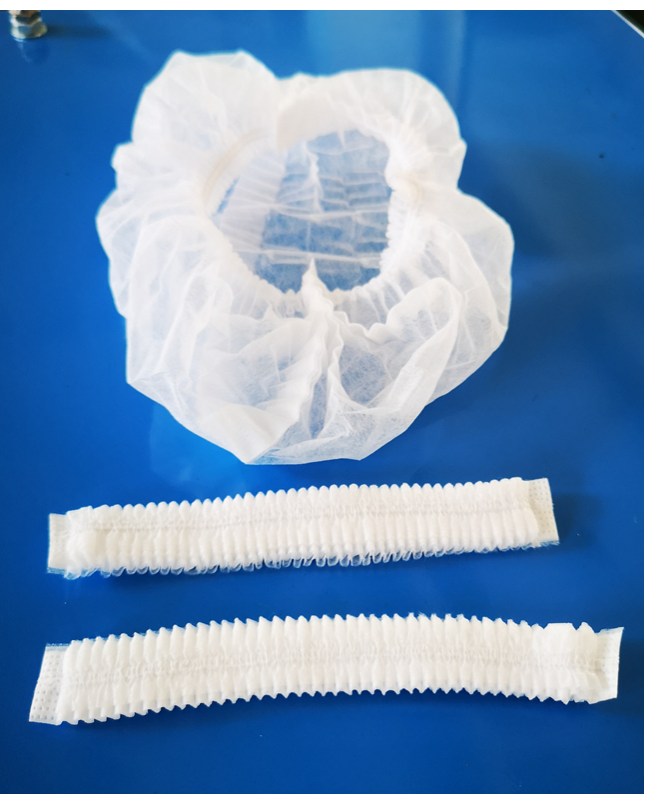

Finished product size | Stretched 48 cm |
Working speed | 150-200 pcs/min |
Main machine | 1.5 kw |
Converter | 1.5 kw |
Total power | 6 kw |
Dimension | 3900*1000*1800 mm |
Wooden box packing size | 4000*1100*1760 mm |
Weight | 750 kg |
Part 2. Main machine parts
2.1 Main parts
Name | Quantity |
Unwinding unit | Mechanical axis 1 pcs |
Adjustable folding unit | Stainless steel 2 pcs |
Driving unit | 2 sets |
Heating unit | 2 pcs |
Heating roller | 3 pcs |
Folding unit | 1 pcs |
Reinforcing ironing unit | 1 pcs |
Heat sealing unit | 1 pcs |
Shutoff unit | 1 pcs |
Roll cutting unit | 1 set |
Copper ring | 9 pcs |
Main motor | 1.5 kw 1 pcs |
Convertor | 1.5 kw 1 pcs |
Temperature meter | 4 pcs |
Ultrasonic unit | 3 pcs |
2.2 Wearable parts along with the machine
Name | Quantity |
Cutting knife | 1 set |
Copper ring | 2 pcs |
Carbon brush | 2 pcs |
Blade | 1 pcs |
Screw | 20 pcs |
Tool box | 1 pcs |
Heating tubes | 3 pcs |
Our Service
⇒One year guarantee for the whole machine, all life follow-up service.
⇒24 hours technical support by email.
⇒Technicians oversea set-up and workers training.
⇒User- friendly English for operation system.
Packing & Delivery
Packaging Details: Stretching film packing
Delivery Detail: Shipped in 30 days after payment
PACKING IS SEAWORTHY AND SAFE.
Q1: What is the warranty for the machine?
A1: For the machine, we offer one year warranty. If any quality problems occurred under normal conditions during this period, we will take on the costs of maintenance and replacement and other related costs.
Q2: How to operate and maintain the machine?
A2: First, we will provide a professional and detailed manual to you with the machine; Second, we will test and debug the machine into the best condition before shipment for you. Last but not least, we also provide abroad technical training services and online expertise consulting.
Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has over10 years of experience in this industry, we have accumulated various contact information of upstream&downstream firms in fields of raw material, auxiliary material, and package for the products. We believe that our professional team can always offer you the best solutions.
Q4: How to find the matching accessories or wearing parts of the machine?
A4: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with a favorable price if it is out of the warranty.
