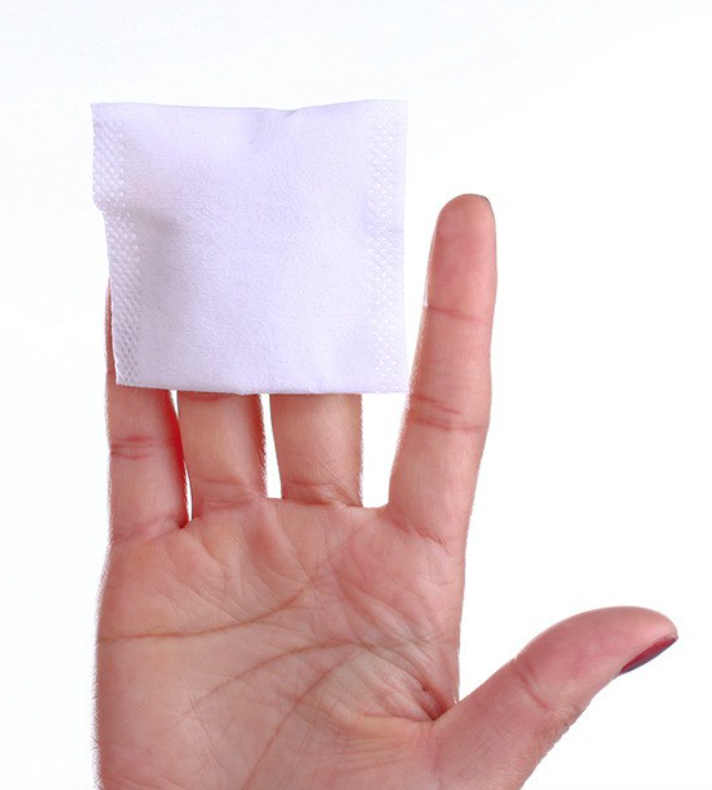

Make-up Pad Making Machine
1. Working principle
Material unwinding and folding - embossing with heating - cutting - automatic counting - finished products pushing out
2. Technical specification
Model | SAN-XS |
Working speed | Around 400 pcs/min |
Power supply | 380 V 50Hz 3 phase 4 wires |
Total power | 3 kW |
Dimension | 4500*800*1100 mm |
Weight | 1500 kg |
Material unwinding unit | Max. Weight 2 ton |
Transmission | Aluminum roller 6 pcs |
Folding unit | 4 sets |
Transverse cutting unit | 1 set with upper and bottom knife |
Embossing unit | 1 set of embossing unit with the heating unit |

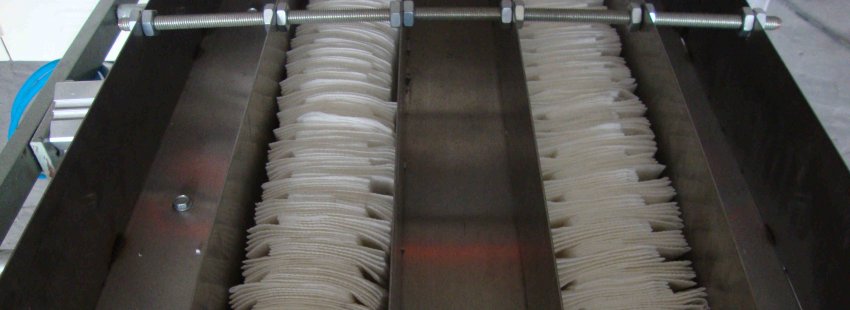

Material output unit | 2 sets of output channels |
The horizontal moving type counting unit | |
Counting unit | Counter 1 set |
Photoelectric unit for detection -Omron | |
Cylinder control Horizontal moving type counting unit- STNC | |
Bearing | Several sets- NSK |
Frequency converter | 2.2 KW - Panasonic/Mitsubishi |
Switch | 5 sets- Mitsubishi/Omron |
Relay | 2 sets -Mitsubishi/Omron |
Contactor | 2 sets -Omron |
Machine frame | 10# steel for max. 3 ton |
Machine iron board | 40 mm steel board; |
Machine table board | 304# stainless steel |
3. Machine structure
- 4 sets of unwinding units for timing unwinding and the finished rolls will be produced in two channels.
- The folding unit is made with 304# stainless steel and can be controlled with handwheels for easier adjustment.
- 1 set of timing driving units to ensure stable and constant material running.
- The steel to steel embossing unit with heating function can emboss on the products.
- 1 set of zig-zag cutting unit driven by cam. It features stable and faster running.

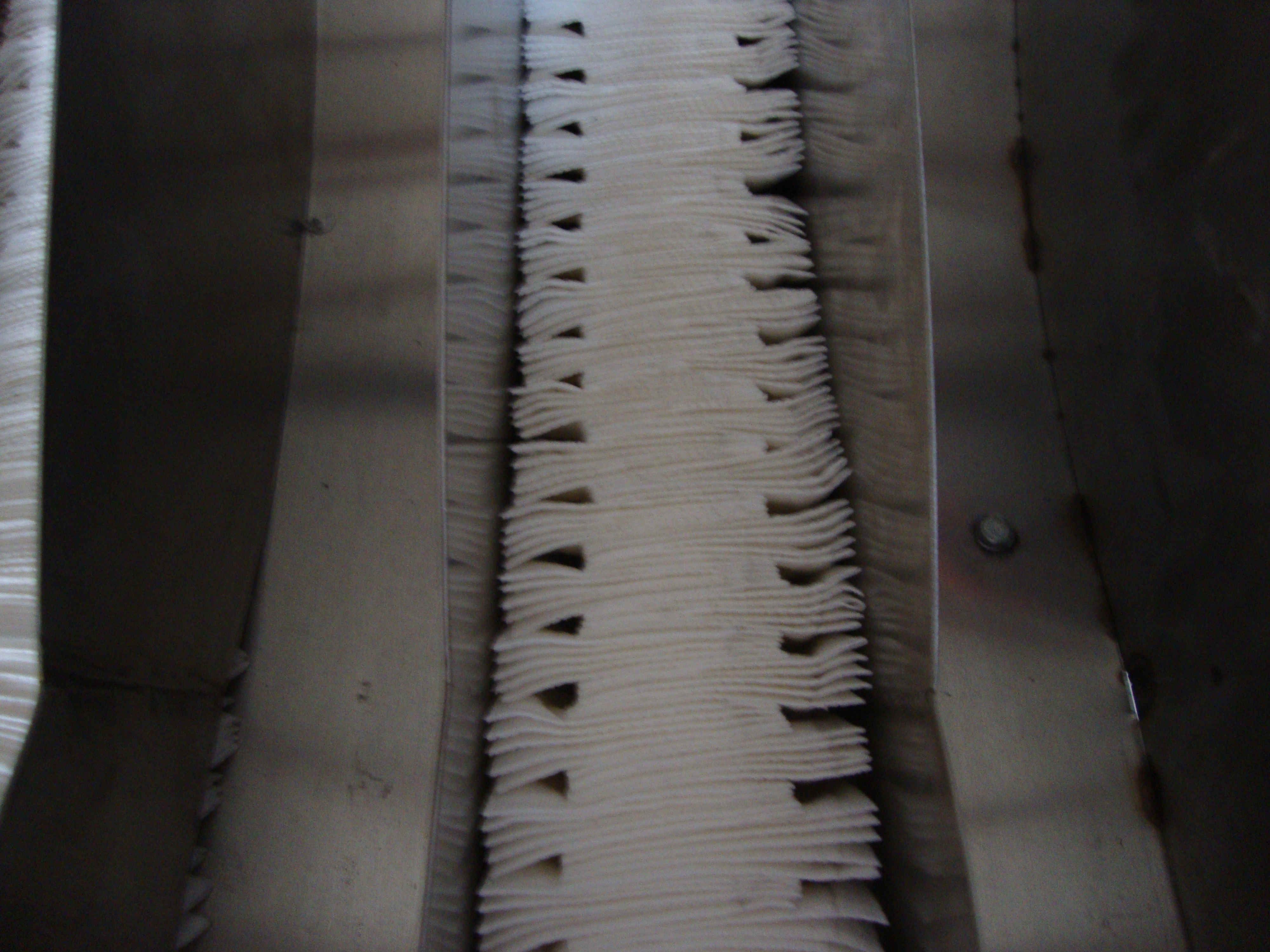

- 1 set of electronic counting units that ensures offset output. It will be easier to count and pack.
4. Spare parts
Toolset | 1 set |
Screwdriver | 2 pcs |
Switch | 1 set |
Round blade | 2 pcs |
Brake | 2 pcs |
Spring | 2 pcs |
Nuts and bolts | 10 pcs |
