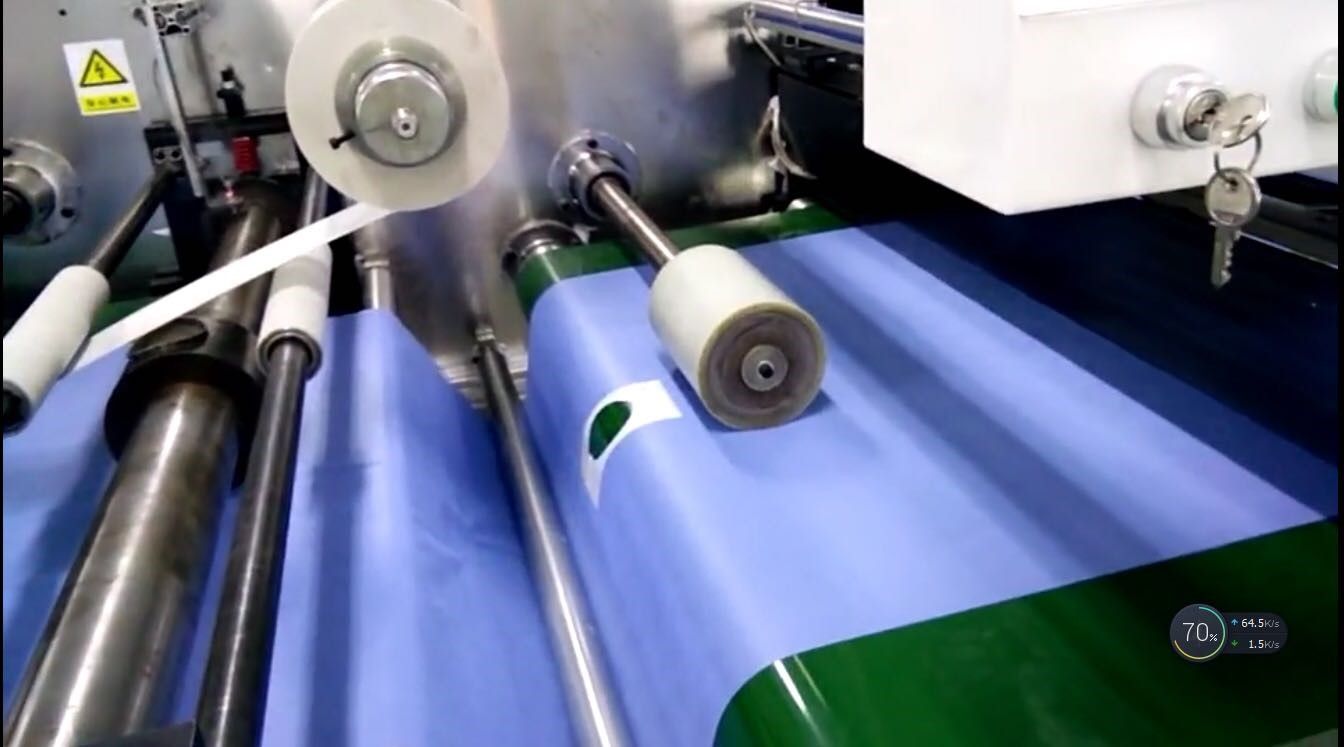

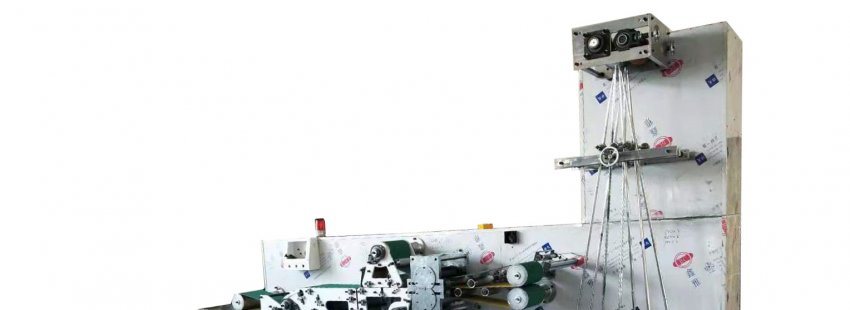

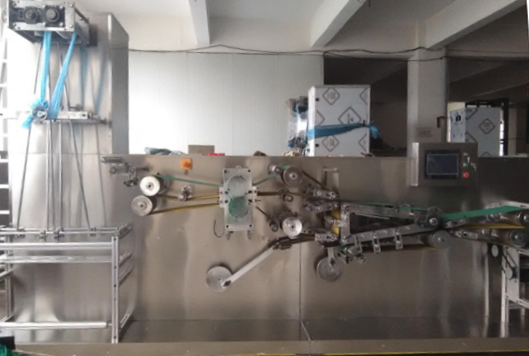

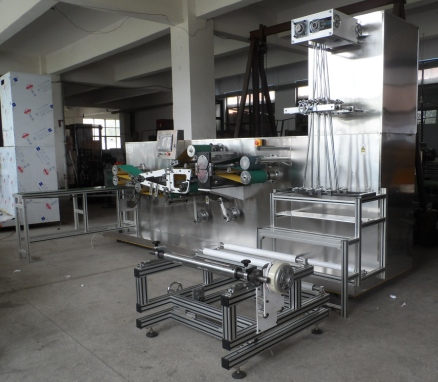

SAN-BD-800/1200/1600 Medical bed sheet folding machine
Model | SAN-BD-800 | SAN-BD-1600 |

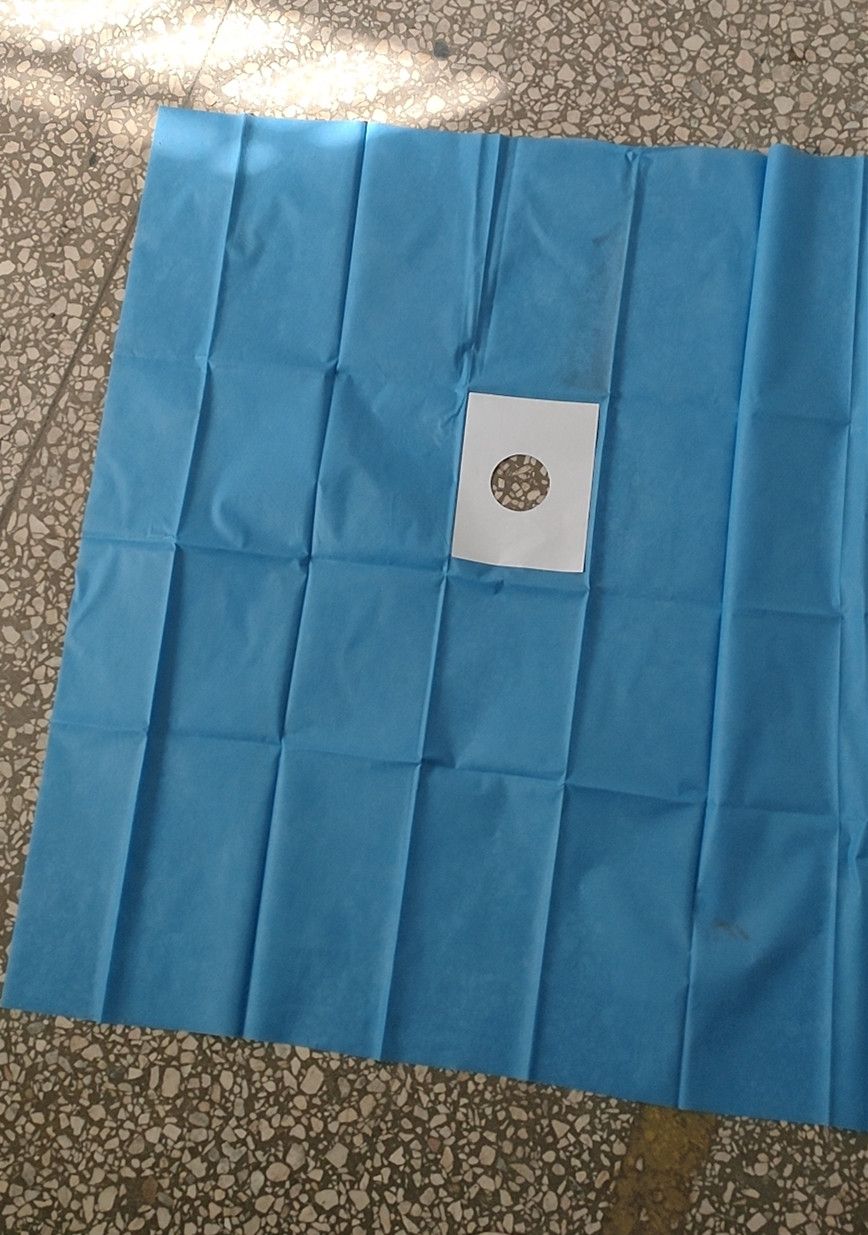

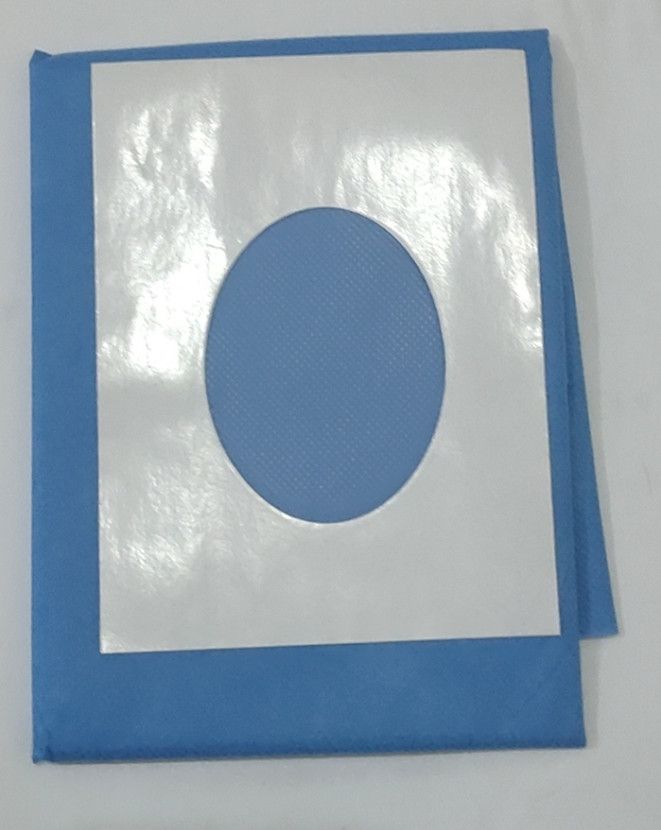

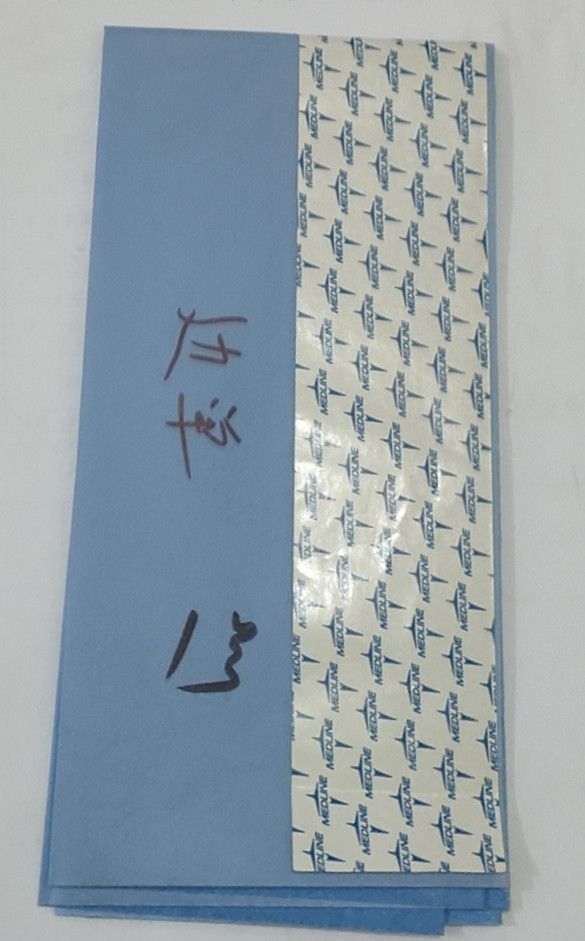

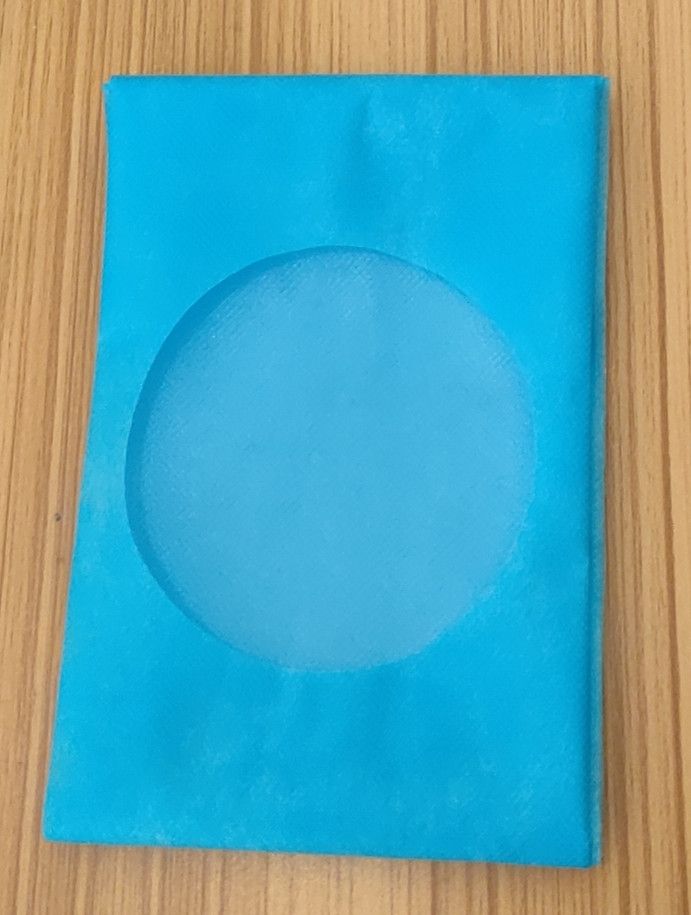

Function | Fold medical use non-woven material and disposable bed sheets. | |
Folding method | Longitudinal fold + horizontal fold 2 times | Longitudinal fold + horizontal fold 3 times |
Finished product output method | Conveying belt | |
Product size | 700*800 mm 700*700 mm 600*600 mm 500*500 mm 400*400 mm | 1400*2000 mm 800*2000 mm 700*2000 mm 800*1600 mm 800*1400 mm 700*1600 mm 700*1400 mm |
Cutting length | 350-800mm | 900-2500 mm |
Length adjusting | Touching panel | |
Length | Adjustable | |
Raw material | 20-60gms non woven | |
Material width | ≦800mm | ≦1600mm |
Paper core diameter | 76.2 mm | |
Material diameter | Max 1100 mm | |
Working speed | 80-100 m/min | |
Power supply | 380v，50hz 3 phase 4 wire | |
Total power | About 8 kw | |
Machine weight | 2300kg | |
Machine dimension | 4*1.1*2.6 m | 5.3*1.2*2.8 m |
Compressed air | 0.6-0.8 Mpa, 1.2m^3/min (provided by the buyer) | |
Main parts | Features |
Machine frame | Frame structure with steel board 14 mm thick. The surface of the machine is stainless steel. |
Control system | 1. Main motor frequency conversion control 2. PLC, Touching panel and independent servo motor control |
Conveying system | Conveying belt along the machine running direction |
Material loading unit | 1. Independent material loading unit that can be assembled 2. Independent material unwinding unit with 5kg magnetic powder tension control unwinding function 3. High speed guiding wheel is added to reduce the material fraction 4. 1.7m wide position mold is added to fix the product. |

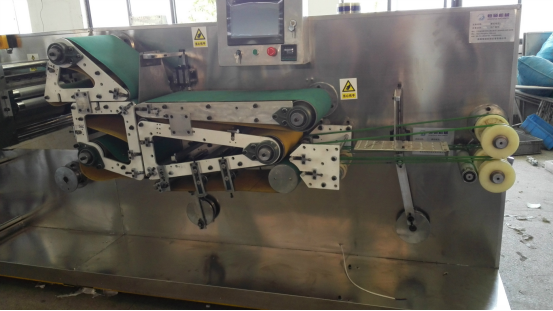

Folding unit | 1. Adjustable folding sticks 6 pcs. 2. Position unit 1 set |
Cutting unit | 1. It consists of 1 upper knife and 1 bottom knife 2. Additional heating unit is added on the bottom roller to form better. |
Folding unit | Half folding unit |
Product output | Works to ensure the products are aligned. |
